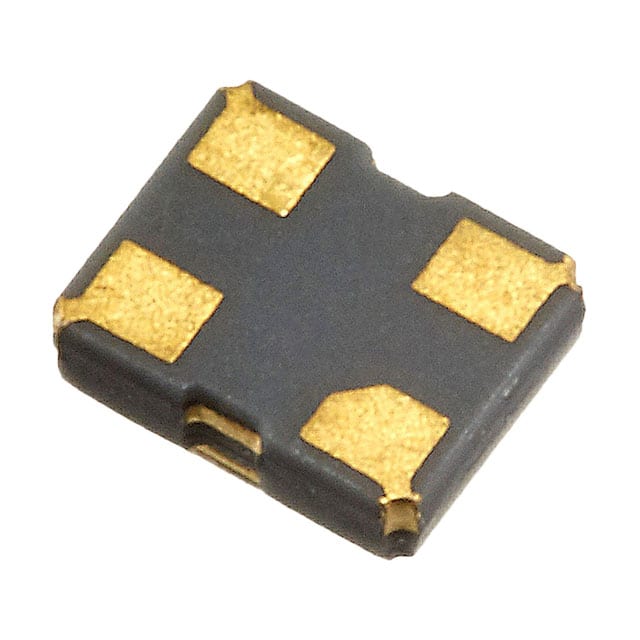

The Raltron CO43025-25.000-EXT-T-TR is a standard crystal oscillator (XO) that generates a precise 25 MHz clock signal. Operating from a nominal 3.3 V supply voltage, this device delivers a CMOS/TTL compatible output with a duty cycle of 45% to 55%. Key electrical specifications include a maximum supply current of 25 mA at 25°C with a 15 pF load, output logic high of minimum 2.8 V, output logic low of maximum 0.4 V, and rise/fall times of 3 ns maximum. The oscillator maintains a frequency stability of ±25 ppm inclusive of initial tolerance, operating temperature range, voltage, and load variations, with RMS jitter of 1 ps maximum.
The device supports an Enable/Disable function on pin 1, allowing the output to be put into a high impedance state. It is designed for a wide operating temperature range of -40°C to +85°C and can be stored from -55°C to +125°C. The oscillator is housed in a compact 4-SMD, no-lead package measuring 7.00 mm x 5.00 mm x 1.80 mm, suitable for surface mount assembly. Performance is verified at a 15 pF CMOS load, making it suitable for general-purpose clock generation in digital systems.
The nominal supply voltage is 3.3 V with a tolerance of ±10%.
It comes in a 4-SMD, No Lead package with dimensions of 7.00 mm x 5.00 mm x 1.80 mm.
The operating temperature range is -40°C to +85°C.
Yes, it is RoHS3 compliant as verified in the datasheet.
The frequency stability is ±25 ppm, inclusive of 25°C tolerance, operating temperature range, voltage, and load variations.
It supports both CMOS and TTL output levels.
Yes, it has an Enable/Disable function where pin 1 high enables the output and pin 1 low disables it to high impedance.
