| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Forward Current | |
| Forward Voltage | |
| Mounting Type | |
| Output Current | |
| Response Time | |
| Temperature |

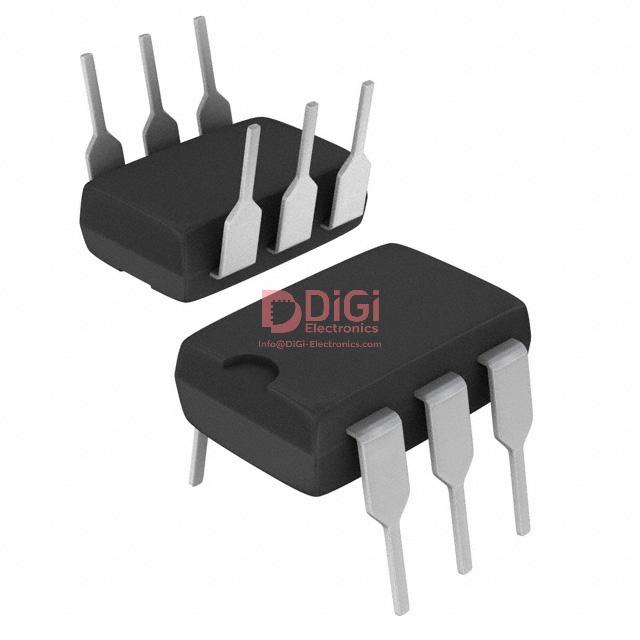

The CNY17-1 is a high-performance optoisolator manufactured by Vishay Semiconductor. It provides a robust 5000Vrms input-to-output isolation voltage, ensuring safety and reliability in various electronic circuits. The device features a high collector-emitter voltage rating of 70V and a minimum current transfer ratio (CTR) of 40% at 10mA.
Designed for applications requiring efficient signal isolation, the CNY17-1 is suitable for power supply regulators, digital logic inputs, microprocessor interfaces, and appliance sensor systems. Its typical response time is 5µs, with fast rise and fall times of 2µs, making it effective in dynamic applications.
The optoisolator is available in a 6-pin dual in-line package (DIP) suitable for through-hole mounting. It operates with a typical forward voltage of 1.39V and a maximum forward current of 60mA, with an output current capability of 50mA per channel.
Environmental specifications include a pollution degree of 2, with creepage and clearance distances of 7.0mm minimum. The device also meets RoHS compliance standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CNY17-1 optoisolator provides 5000Vrms of input-to-output isolation voltage.
The CNY17-1 has a maximum collector-emitter voltage of 70V.
The CNY17-1 has a minimum current transfer ratio of 40% at an input current of 10mA and VCE of 5V.
The typical response time for the CNY17-1 is 5µs under specific test conditions.
The CNY17-1 is available in a 6-DIP package.
Yes, the CNY17-1 is RoHS3 compliant.
