| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17,974 pcs
|
17974 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,577 pcs
|
1577 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,403 pcs
|
1403 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,403 pcs
|
1403 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
602 pcs
|
602 pcs | On Request | 1 | On Request | On Request | 0118+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Transfer Ratio (Max) | |
| Current Transfer Ratio (Min) | |
| Input Type | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Type | |
| Rise | |
| Supplier Device Package | |
| Tape & Reel | |
| Vce Saturation (Max) | |
| Voltage |

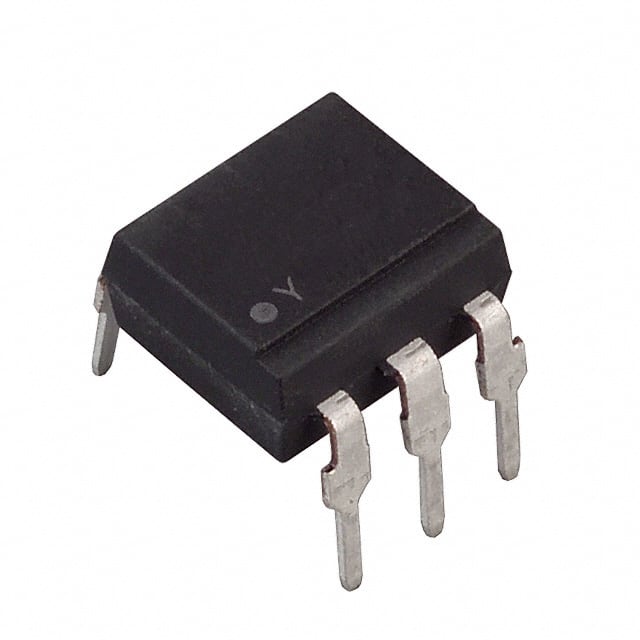

The CNY17-3 from Lite-On Inc. is a single-channel optocoupler designed for isolation applications. It provides a high input-output isolation voltage of 5000Vrms, making it suitable for applications requiring electrical separation.
This optocoupler features a transistor output with a base connection and operates with a DC input. Key electrical specifications include a maximum forward current of 60mA, a minimum current transfer ratio (CTR) of 100% at 10mA, and a maximum Vce saturation voltage of 300mV. The operating temperature range is from -55°C to 100°C.
The CNY17-3 is housed in a standard 6-pin DIP (Dual In-line Package) with a 0.300" (7.62mm) lead spacing, designed for through-hole mounting. It also meets RoHS3 compliance and has an MSL 1 rating.
Applications for this optocoupler include power supply regulators, digital logic inputs, microprocessor inputs, appliance sensor systems, and industrial controls where reliable signal isolation is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.24 | $1.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CNY17-3 optocoupler offers an isolation voltage of 5000Vrms.
The minimum current transfer ratio (CTR) for the CNY17-3 is 100% at a forward current of 10mA.
The CNY17-3 operates within a temperature range of -55°C to 100°C.
The CNY17-3 is available in a 6-pin DIP (Dual In-line Package) designed for through-hole mounting.
Yes, the CNY17-3 is RoHS3 compliant.
