| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,300 pcs
|
1300 pcs | On Request | 1 | On Request | On Request | 1305 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Turn Off Time | |
| Turn On Time |

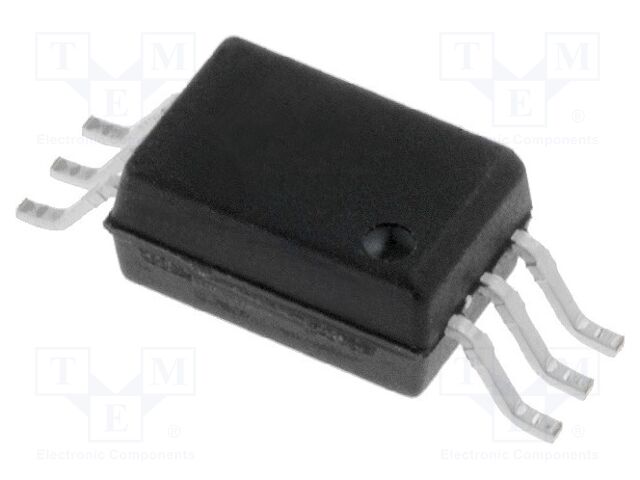

The CNY17-2-300E optocoupler, manufactured by Avago Technologies (now Broadcom Inc.), is a single-channel device with a transistor output. It offers a high insulation voltage of 5kV and a collector-emitter voltage rating of 70V. This component is designed for surface-mount device (SMD) applications and comes in a Gull wing 6 package.
Key electrical characteristics include a typical Current Transfer Ratio (CTR) of 63-125% at 10mA, with a turn-on time of 5µs and a turn-off time of 5µs. The optocoupler is supplied in tube packaging, with a standard quantity of 65 pieces per tube.
This device is suitable for various isolation applications where reliable signal transfer between circuits is required, while maintaining electrical separation. Its SMD form factor facilitates integration into compact electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The insulation voltage is 5kV.
The collector-emitter voltage is 70V.
The typical CTR is 63-125% at 10mA.
The turn-on time is 5µs and the turn-off time is 5µs.
It is designed for SMD mounting.
The standard package quantity is 65 pieces per tube.
