| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | 15 | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Orientation | |
| Termination Style | |
| Voltage |

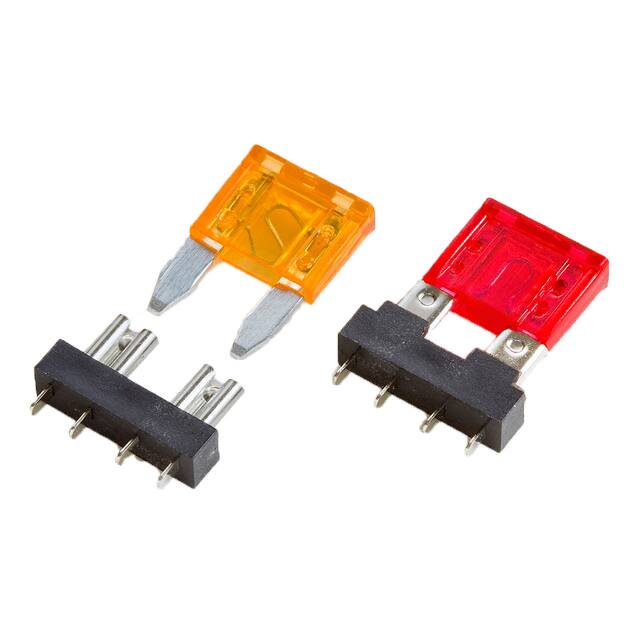

The OptiFuse CNM-02 is a PC board mount fuse clip designed for use with mini automotive blade fuses (ATM type). It is rated for 15A at 500V AC, making it suitable for circuit protection in a variety of applications.
The fuse clip features a through hole mounting style with PC pin termination, allowing for secure soldering to a printed circuit board. The vertical orientation saves board space. The body is made of phosphor bronze with a tin-plated finish, providing good conductivity and corrosion resistance.
This single-circuit fuse clip accommodates fuses with dimensions of 0.433" L x 0.152" W (11.00mm x 3.85mm). It is designed for use with OptiFuse APM series mini blade fuses.
The CNM-02 is rated for 15A.
The voltage rating is 500V AC.
It accepts mini blade fuses (ATM type) with dimensions 0.433" L x 0.152" W (11.00mm x 3.85mm).
It is a through hole mount with PC pin termination.
The contacts are tin-plated phosphor bronze.
