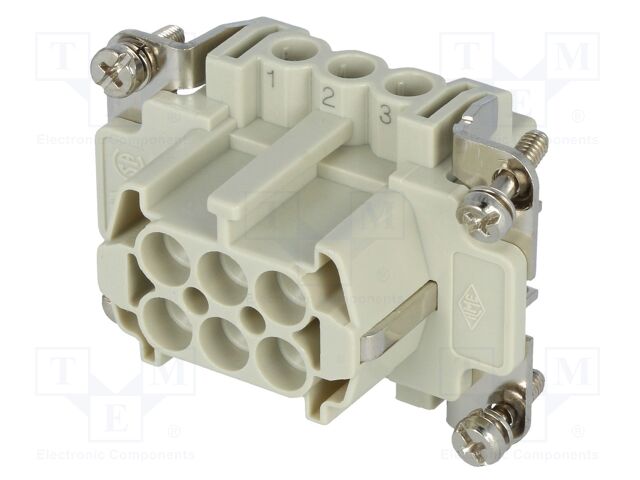

The ILME CNEF 06 T is a female HDC connector designed for robust industrial applications. It belongs to the CNE series and offers a 6-pin configuration, with an additional protective earth (PE) contact.
This connector is rated for a current of 16A and a voltage of 500V, making it suitable for demanding power and signal transmission tasks. The electrical connections are established via screw terminals, ensuring a secure and reliable connection. It accommodates conductor sizes ranging from 0.5mm² to 2.5mm².
The mechanical design includes a housing size of 44.27mm and an insert fastening of 44x27mm. The mounting is designed for direct attachment to the conductor. The contact plating is silver, providing good conductivity and durability.
This HDC connector is suitable for various industrial environments where reliable and safe connections are paramount. Its specifications make it a versatile component for power distribution, control systems, and data transmission in harsh conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ILME CNEF 06 T connector has a current rating of 16A.
The ILME CNEF 06 T connector is rated for 500V.
The ILME CNEF 06 T connector has 6 pins, plus a protective earth (PE) contact.
The ILME CNEF 06 T connector supports wire sizes from 0.5mm² to 2.5mm².
The ILME CNEF 06 T connector is mounted on the conductor.
The ILME CNEF 06 T connector uses screw terminals for termination.
