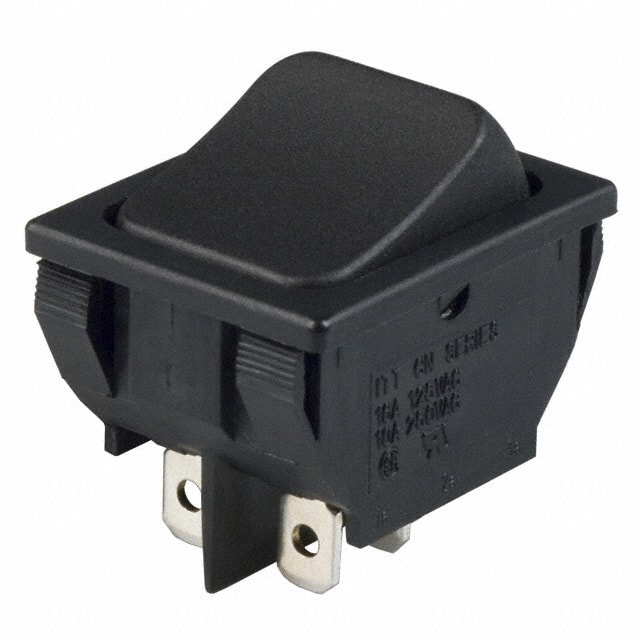

CN202J12S215Q The C&K CN202J12S215Q is a DPST rocker switch with a 16A 125V AC rating. It features a panel mount, snap-in design with quick connect termination.
Mfr Part #:

CN202J12S215Q

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K CN202J12S215Q is a DPST rocker switch with a 16A 125V AC rating. It features a panel mount, snap-in design with quick connect termination.
✓ Total Stock: 400 pcs
$ Price Range: $0.75

CN202J12S215Q Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
400 pcs
On Request
400 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CN202J12S215Q Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Marking
Actuator Type
Approval Agency
Circuit
Color
Current Rating (Amps)
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

CN202J12S215Q Description

Short technical summary and product information.

This C&K CN202J12S215Q rocker switch is designed for reliable on-off switching applications. It operates at 16A and 125V AC, featuring a Double Pole Single Throw (DPST) circuit configuration.



The switch is built for panel mounting with a convenient snap-in mechanism and utilizes 0.187" (4.7mm) quick connect terminals for easy integration. The actuator is a concave black type, marked with no specific legends.



With an operating temperature range of -20°C to 85°C and an electrical life of 10,000 cycles, this switch is suitable for various industrial and commercial applications. It has received cULus agency approval, indicating compliance with relevant safety standards.

CN202J12S215Q Quick Information

Product Type: Rocker Switch
Series: CN
Canonical Name: C&K CN202J12S215Q Rocker Switch

CN202J12S215Q Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CN202J12S215Q Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

CN202J12S215Q Features

  • DPST rocker switch for on-off control.
  • Rated for 16A at 125V AC.
  • Panel mount with snap-in installation.
  • Features 0.187" quick connect terminals.
  • Operates from -20°C to 85°C.

CN202J12S215Q Applications

  • Suitable for general purpose switching.
  • Used in control panel applications.
  • Ideal for equipment power control.
  • Applicable in industrial automation.

CN202J12S215Q FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the CN202J12S215Q rocker switch?

The operating voltage for the CN202J12S215Q rocker switch is 125V AC.

What is the operating temperature range of this rocker switch?

The operating temperature range for the CN202J12S215Q rocker switch is -20°C to 85°C.

What is the current rating of the C&K CN202J12S215Q?

The current rating for the CN202J12S215Q rocker switch is 16A (AC).

What type of circuit does the CN202J12S215Q rocker switch use?

The CN202J12S215Q rocker switch uses a DPST (Double Pole Single Throw) circuit.

How is the CN202J12S215Q rocker switch mounted?

The CN202J12S215Q rocker switch is designed for panel mounting and features a snap-in installation.
