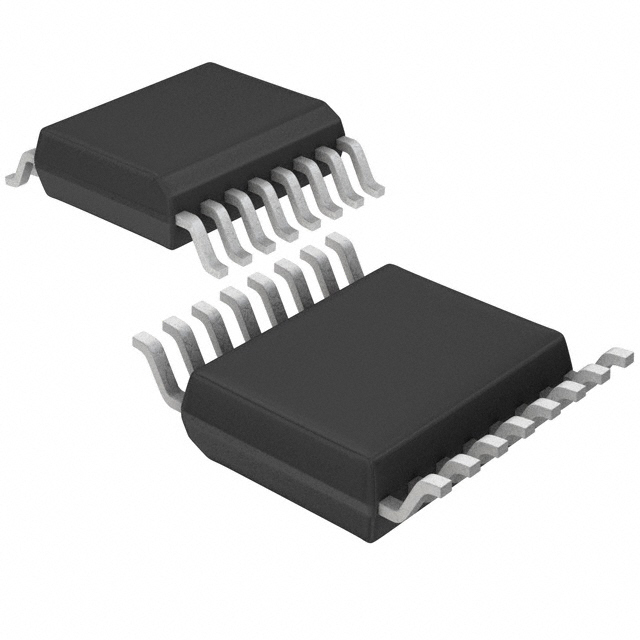

CMX683D4 The CML Microcircuits CMX683D4 is a versatile Call Progress and Voice Detector IC designed for PSTN applications. It operates within a 2.7V to 5.5V supply range and features a 16-SOIC package.
Mfr Part #:

CMX683D4

Available from 1 distributors
Mfr Name: CML Microcircuits
CML Microcircuits
The CML Microcircuits CMX683D4 is a versatile Call Progress and Voice Detector IC designed for PSTN applications. It operates within a 2.7V to 5.5V supply range and features a 16-SOIC package.
✓ Total Stock: 2,568 pcs

CMX683D4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,568 pcs
On Request
2568 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CMX683D4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Function
Interface
Lead Spacing
Mounting Type
Number of Circuits
Operating Temperature
Power (Watts)
Supplier Device Package
Voltage
View Similar Products (0)

CMX683D4 Description

Short technical summary and product information.

The CML Microcircuits CMX683D4 is a general-purpose Call Progress tone detector for monitoring call progress in Public Switched Telephone System (PSTN) applications. It can distinguish Dial Tone, Ringing, Busy, and Not Available states. The device utilizes advanced digital techniques for characterizing call progress tones, line noise, and voice signals, offering high sensitivity with low false detection rates.



Key features include detection of single and dual call progress tones, voice detect outputs (fast and slow), and a wide dynamic range with low falsing. It operates with a low power consumption of 600µA at 3.0V typical and requires a single 3.58MHz crystal for accurate performance. The supply voltage range is 2.7V to 5.5V.



The CMX683D4 is suitable for worldwide payphone systems, telephone redialling systems, dialling modems, banking and billing systems, telecom test equipment, and telecom security systems. It is available in a 16-SOIC package, designed for surface mount installation.



This IC is ideal for applications requiring reliable call progress monitoring and voice activity detection, enabling systems to commence charging or take other actions based on call status.

CMX683D4 Quick Information

Product Type: Telecom IC
Canonical Name: CMX683D4 Call Progress and Voice Detector
Subcategory: Call Progress Tone Detector

CMX683D4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CMX683D4 Features

  • Detects single and dual call progress tones.
  • Provides fast and slow voice detect outputs.
  • Operates over a wide dynamic range.
  • Low power consumption of 600µA at 3.0V.
  • Requires a 3.58MHz crystal oscillator.

CMX683D4 Applications

  • Worldwide payphone systems.
  • Telephone redialling systems.
  • Dialling modem applications.
  • Banking and billing systems.
  • Telecom test equipment.

CMX683D4 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the CMX683D4?

The operating voltage for the CMX683D4 is 2.7V to 5.5V.

What is the operating temperature range of the CMX683D4?

The CMX683D4 operates between -40°C and 85°C.

What package type is the CMX683D4 available in?

The CMX683D4 is available in a 16-SOIC package.

What is the function of the CMX683D4 IC?

The CMX683D4 is a Call Progress and Voice Detector IC.
