CMX589AE2 The CML Microcircuits CMX589AE2 is a full-duplex GMSK modem. It supports data rates from 4kbps to 200kbps and operates within a 3.0V to 5.5V voltage range.
Mfr Part #:

CMX589AE2

Available from 1 distributors
Mfr Name: CML Microcircuits
CML Microcircuits
The CML Microcircuits CMX589AE2 is a full-duplex GMSK modem. It supports data rates from 4kbps to 200kbps and operates within a 3.0V to 5.5V voltage range.
✓ Total Stock: 3,566 pcs

CMX589AE2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,566 pcs
On Request
3566 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CMX589AE2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Baud Rates
Lead Spacing
Mounting Type
Supplier Device Package
Voltage
View Similar Products (0)

CMX589AE2 Description

Short technical summary and product information.

The CMX589AE2 from CML Microcircuits is a single-chip synchronous data pump/modem designed for wireless data applications. It employs Gaussian filtering for Minimum Shift Keying (GMSK) baseband modulation and offers a wide range of selectable data rates from 4kbps to 200kbps. The device supports full or half-duplex operation and is pin programmable for different system requirements.



Key electrical characteristics include a selectable BT value of 0.3 or 0.5 and low power consumption, with typical values of 1.5mA at 3.0V/20kbps and 4.0mA at 5.0V/64kbps. The operating voltage range is from 3.0V to 5.5V.

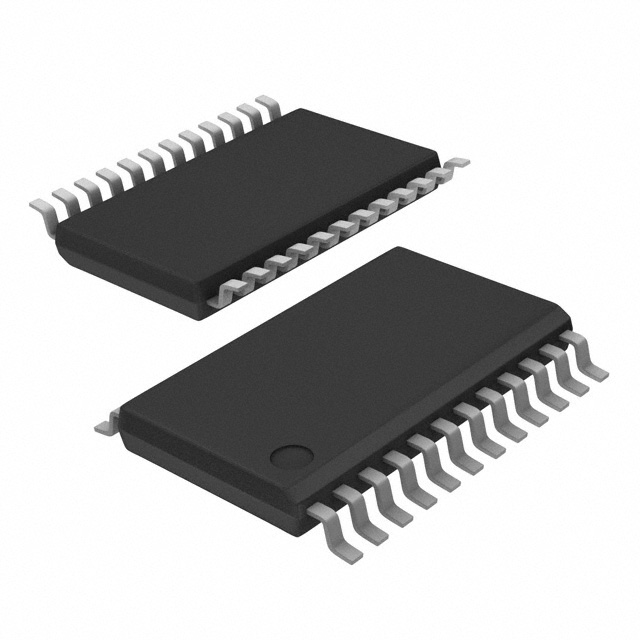

This GMSK modem is available in a 24-TSSOP package, suitable for portable wireless data applications such as Cellular Digital Packet Data (CDPD), Mobitex, spread spectrum data links, and GPS/Differential GPS wireless links. Its compact size and low power features make it ideal for PCMCIA/PC cards and other portable devices.

CMX589AE2 Quick Information

Product Type: GMSK Modem
Canonical Name: CMX589AE2 GMSK Modem
Subcategory: GMSK Modem

CMX589AE2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CMX589AE2 Features

  • Full-duplex GMSK data modem.
  • Data rates from 4kbps to 200kbps.
  • Selectable BT values of 0.3 or 0.5.
  • Low power consumption at 3.0V and 5.0V.
  • Available in 24-TSSOP package.

CMX589AE2 Applications

  • Portable wireless data applications.
  • Cellular Digital Packet Data (CDPD).
  • Mobitex Mobile Data System.
  • Spread spectrum data links.
  • GPS/Differential GPS wireless links.

CMX589AE2 FAQs

5 frequently asked questions generated from this part’s specifications.
What are the supported data rates for the CMX589AE2?

The CMX589AE2 supports data rates from 4kbps to 200kbps.

What is the operating voltage range for the CMX589AE2?

The CMX589AE2 operates within a voltage range of 3.0V to 5.5V.

What package type is the CMX589AE2 available in?

The CMX589AE2 is available in a 24-TSSOP package.

What is the RoHS status of the CMX589AE2?

The CMX589AE2 is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the CMX589AE2?

The Moisture Sensitivity Level (MSL) for the CMX589AE2 is 1 Unlimited.
