| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Filter Type | |
| Halogen Free | |
| Inductance | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Rated Current | |
| SVHC Present | |
| Width |

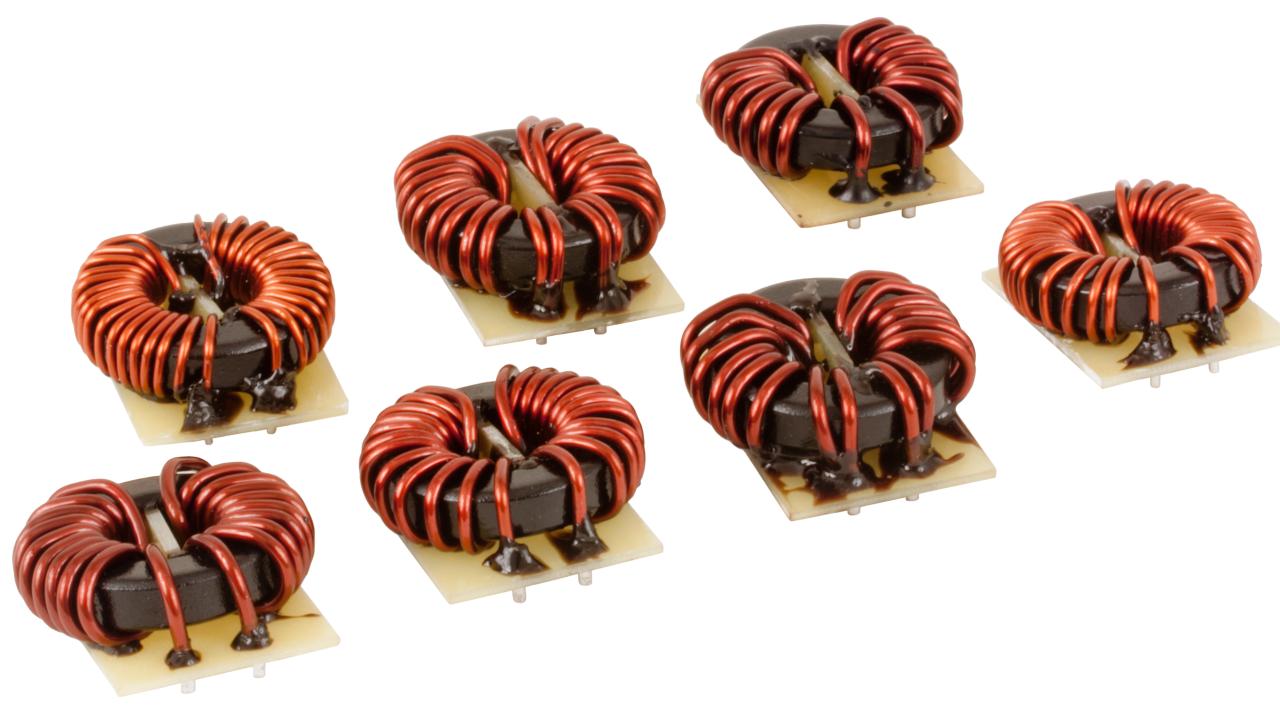

The Laird Technologies CMX1616Z171B-10 is a wire-wound common mode choke suitable for power line filtering applications. This component features a nominal inductance of 176 µH at 100 KHz and can handle a maximum rated current of 62A.
With a maximum DCR of 0.65 Ohms and a coil-to-coil voltage rating of 1500 VAC, this choke is designed for robust performance. It operates within a temperature range of -40°C to 125°C and has a maximum voltage rating of 250 Vrms.
The CMX1616Z171B-10 is designed for through-hole mounting (THT) and has dimensions of 41.00 mm in length and width, with a height/thickness of 16.50 mm. It is compliant with RoHS3 standards and is lead-free.
This common mode choke is part of the CMX1616 series, offering reliable EMI suppression for various industrial and electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40 °C to 125 °C.
Yes, it is RoHS3 Compliant.
The nominal inductance is 176 µH at 100 KHz.
The maximum rated current is 62 A.
The maximum DCR is 0.65 Ω.
The package dimensions are 41.00 mm by 41.00 mm with a height of 16.50 mm.
