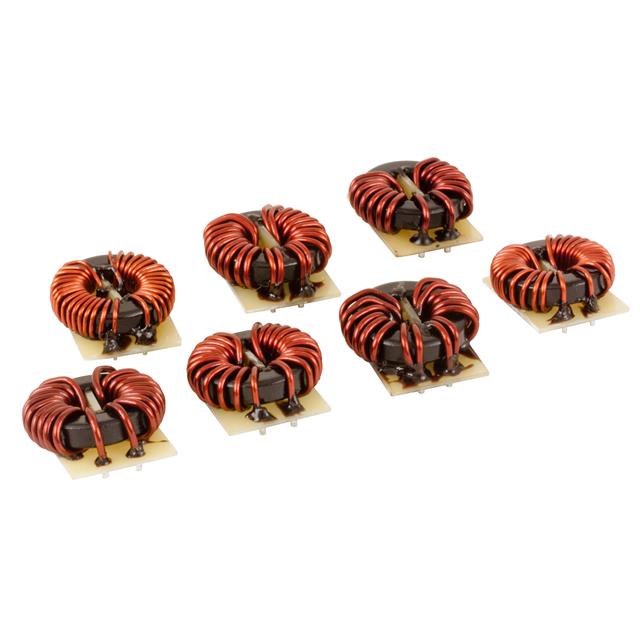

CMX1616Y222B-10 is a power line common mode choke manufactured by Laird Technologies. It provides two-line common mode filtering with an inductance of 2.156 mH measured at 100 kHz. The component is rated for a maximum current of 19A and a maximum voltage of 250V, with a maximum DC resistance of 6mOhm.
The choke operates over a temperature range of -40°C to 125°C, making it suitable for industrial and automotive environments where temperature extremes are common. It is available in a horizontal, 4 PC pin through-hole package with body dimensions of 42.00mm x 40.00mm and a maximum height of 15.50mm.
Common mode chokes are used to attenuate electromagnetic interference (EMI) by presenting high impedance to common-mode currents while allowing differential-mode signals to pass. This component is well suited for power supply input stages, inverters, and other high-current power electronics requiring EMI filtering. The 250V voltage rating and 19A current capacity make it appropriate for a range of power line filtering applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.66 | $14.66 |
| 10+ | $12.06 | $12.06 |
| 25+ | $11.15 | $11.15 |
| 50+ | $10.52 | $10.52 |
| 240+ | $9.21 | $9.21 |
| 480+ | $8.91 | $8.91 |
| 720+ | $8.40 | $8.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.156 mH at 100 kHz.
19A.
6mOhm.
250V.
-40°C to 125°C.
Horizontal, 4 PC Pin through-hole.
RoHS3 Compliant.
