| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Binning and Characterization Temperature | |
| CCT (K) | |
| CRI (Color Rendering Index) | |
| Color | |
| Configuration | |
| Current | |
| Forward Voltage Option | |
| Height | |
| Lens Type | |
| Light Emitting Surface (LES) | |
| Lumens | |
| Luminous Flux @ Current | |
| Maximum Drive Current | |
| Temperature | |
| Type | |
| Viewing Angle | |
| Voltage |

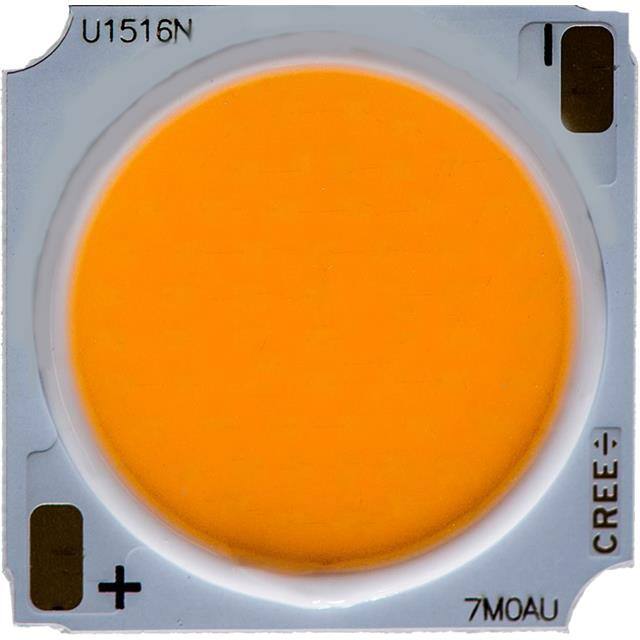

The CreeLED, Inc. XLamp CMU1516-0000-000N0U0A35H is a Chip On Board (COB) LED module designed for premium indoor and outdoor lighting applications. It features a 14.5mm Light Emitting Surface (LES) and a 115° viewing angle, providing a uniform chromaticity profile.
This LED module operates at a typical forward voltage of 33.7V and a current of 450mA, delivering a luminous flux of 2161 lumens. It boasts high efficacy at 142 lm/W and a color rendering index (CRI) of 90, with a correlated color temperature (CCT) of 3500K within a 2-step MacAdam ellipse.
The CMU1516 is characterized at 85°C and has a maximum drive current of 1200mA. Its compact dimensions of 19.00mm x 19.00mm and a height of 1.50mm make it suitable for various luminaire designs. The module is RoHS and REACH compliant.
Optimized for applications such as track lighting, spot lighting, and downlighting, the XLamp CMU LED family offers industry-leading performance in commonly available package and LES sizes, retaining mechanical and optical compatibility with previous generations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CCT is 3500K.
The CRI is 90.
The viewing angle is 115 degrees.
The typical luminous flux is 2161 lumens.
The efficacy is 142 lumens per watt.
Yes, it is RoHS3 Compliant.
The MSL is 1 Unlimited.
