| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Carton Quantity | |
| Carton Size | |
| Coil Resistance | |
| Current | |
| Current Consumption | |
| Driver Circuitry | |
| Frequency | |
| Height | |
| Input Type | |
| Lead Style | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Operating Voltage | |
| Port Location | |
| Rated Frequency | |
| Rated Voltage | |
| Reel Quantity | |
| Reel Size | |
| Solder Peak Temperature | |
| Sound Pressure Level | |
| Sound Pressure Level (SPL) | |
| Storage Temperature | |
| Tape & Reel | |
| Technology | |
| Termination | |
| Voltage | |
| Voltage Range | |
| Weight | |
| Width |

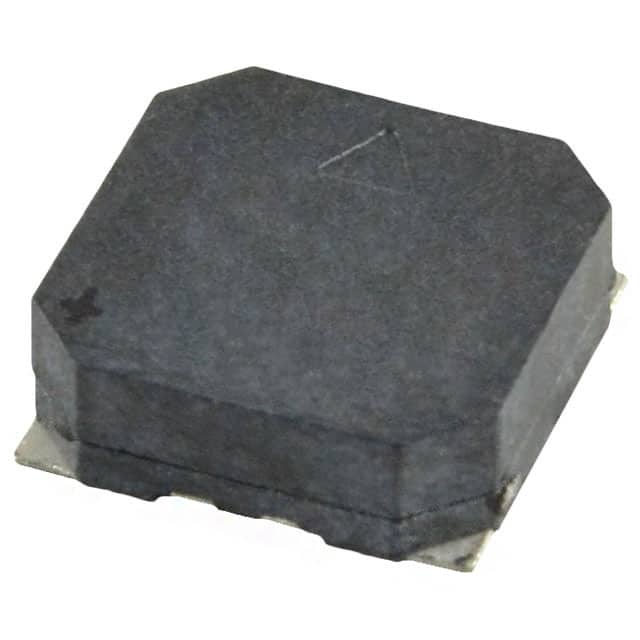

The CMT-7525S-SMT-TR is a magnetic buzzer transducer from CUI Devices (now Same Sky). It is an externally driven, single tone indicator designed for surface mount assembly.
Key electrical specifications include a rated voltage of 3.6V (zero-peak), operating range of 2.5V to 4.5V, typical current consumption of 100mA at rated conditions, and a rated frequency of 2.73kHz. The sound pressure level is 85dBA minimum and 90dBA typical measured at 5cm with a square wave input.
The component measures 7.5mm x 7.5mm x 2.5mm and weighs 0.3g. It features side port location, solder pad termination, and is housed in LCP material. Operating temperature range is -40°C to +85°C. The device is RoHS compliant and packaged on 330mm reels with 1000 pieces per reel.
The rated voltage is 3.6V (zero-peak).
The operating voltage range is 2.5V to 4.5V.
The rated frequency is 2.73kHz.
The sound pressure level is 85dBA minimum and 90dBA typical at 5cm.
It is a transducer with externally driven driver circuitry.
The mounting type is surface mount.
The operating temperature range is -40°C to +85°C.
