| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Mounting Type | |
| Speed | |
| Tape & Reel | |
| Technology |

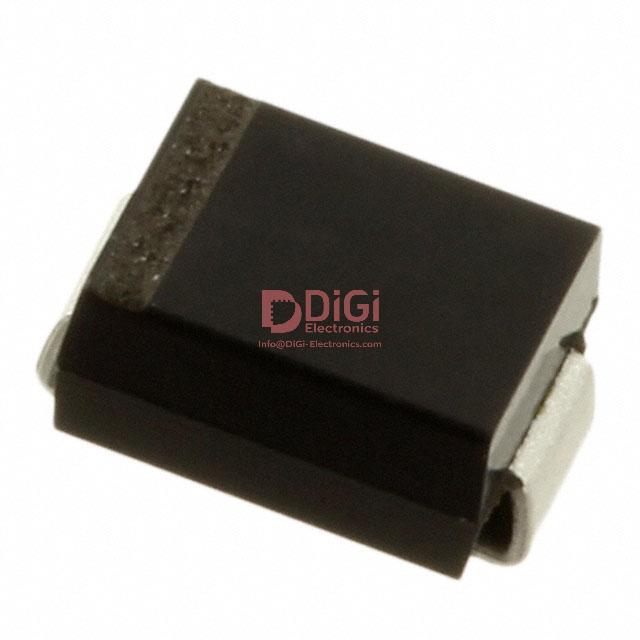

The Central Semiconductor Corp CMSH2-40 TR13 is a Schottky diode designed for various electronic applications. It features a maximum DC reverse voltage (Vr) of 40V and an average rectified current (Io) of 2A.
The forward voltage (Vf) is a maximum of 500mV at 2A, and the reverse leakage current at Vr is 500µA at 40V. The diode has a fast recovery speed of less than or equal to 500ns. Its capacitance is 150pF at 4V and 1MHz.
This component is housed in a DO-214AA, SMB package and is intended for surface mounting. It is supplied in tape and reel packaging.
Key electrical characteristics include a 40V reverse voltage, 2A current rating, and a low forward voltage drop.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum DC reverse voltage (Vr) for the CMSH2-40 TR13 is 40V.
The CMSH2-40 TR13 has an average rectified current (Io) rating of 2A.
The maximum forward voltage (Vf) at 2A for the CMSH2-40 TR13 is 500mV.
The reverse leakage current at 40V for the CMSH2-40 TR13 is 500µA.
The CMSH2-40 TR13 is in a DO-214AA, SMB package.
The CMSH2-40 TR13 is packaged in Tape & Reel (TR).
