| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:35:06 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Configuration | |
| Forward Current | |
| Forward Voltage (Typical @ IF=1 mA) | |
| Forward Voltage (Typical @ IF=10 mA) | |
| Halogen Free | |
| Junction Capacitance | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Peak Repetitive Reverse Voltage | |
| Power Dissipation | |
| Reverse Leakage Current | |
| Reverse Recovery Time | |
| Reverse Recovery Time (trr) | |
| Reverse Voltage | |
| Speed | |
| Storage Temperature | |
| Storage Temperature Range | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Termination Style | |
| Thermal Resistance | |
| Voltage | |
| forward_voltage (Typical @ IF=100 mA) | |
| peak_forward_surge_current (@ tp=1.0 µs) |
The Central Semiconductor CMSD6001S TR PBFREE is a dual series ultra low leakage silicon switching diode designed for high-reliability switching applications. It features a 1 pair series connection configuration with a continuous reverse voltage rating of 75V and a peak repetitive reverse voltage of 100V. The diode supports a continuous forward current of 250mA and can handle peak forward surge currents up to 4.0A for 1.0µs pulses.
Electrical characteristics include a typical forward voltage of 0.85V at 1mA, 0.95V at 10mA, and 1.1V at 100mA. Reverse leakage current is typically 500pA at 75V, and reverse recovery time is 3µs. Junction capacitance is typically 2.0pF at 0V and 1MHz. The device is halogen free by design and operates over a temperature range of -65°C to +150°C.

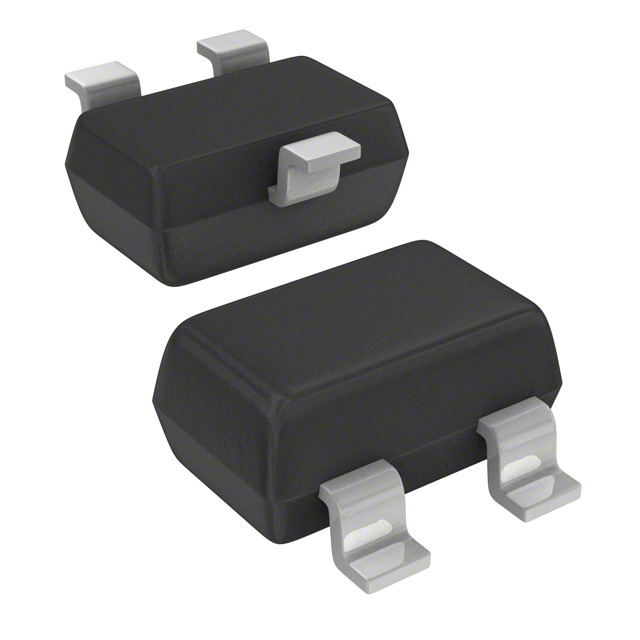

The diode is supplied in a surface mount SOT-323 (SC-70) package with a thermal resistance of 455°C/W junction-to-ambient. It is suitable for switching circuits requiring extremely low leakage current and is RoHS3 compliant and REACH unaffected.
The continuous reverse voltage is 75V, and the peak repetitive reverse voltage is 100V.
The continuous forward current is 250mA, with a peak forward surge current of 4.0A for 1.0µs pulses.
The typical forward voltage is 1.1V at 100mA.
The typical reverse recovery time is 3µs under test conditions of IF=10mA, IR=1mA, RL=100Ω.
It is available in a surface mount SOT-323 (SC-70) package.
