Mfr Part #:

CMS25NN03V8-HF

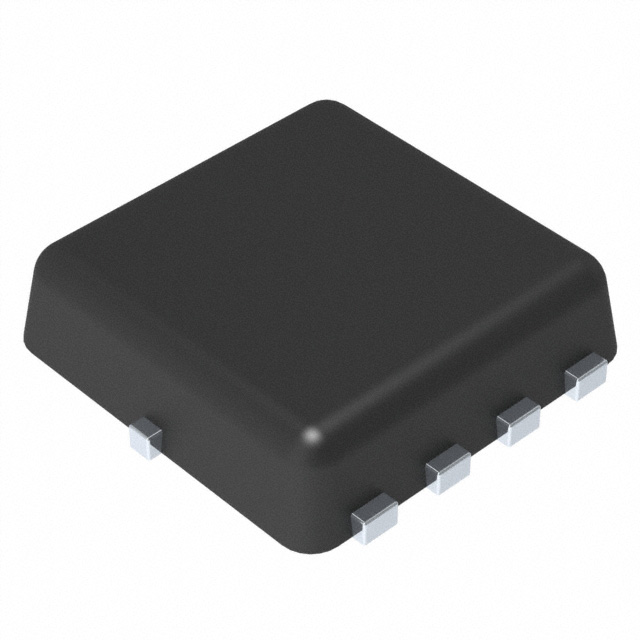

Name: CMS25NN03V8-HF
Brand: Comchip Technology
SKU: CMS25NN03V8-HF

Mfr Name: Comchip Technology

Description:

MOSFET N-CH 30VDS 20VGS 25A PDFN

Stock on Request

CMS25NN03V8-HF Description

Short technical summary and product information.

MOSFET N-CH 30VDS 20VGS 25A PDFN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Transistors - FETs, MOSFETs - Arrays
Manufacturer Name	Comchip Technology
Configuration	2 N-Channel (Dual)
Current	25A
Drain to Source Voltage (Vdss)	30V
Gate Charge (Qg) (Max) @ Vgs	7.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	572pF @ 15V
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C
Power	1.7W (Ta), 20.8W (Tc)
Rds On (Max) @ Id, Vgs	20mOhm @ 10A, 10V
Supplier Device Package	8-PDFN (SPR-PAK ) (3.3x3.3)
Vgs(th) (Max) @ Id	2.5V @ 250µA
