| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature |

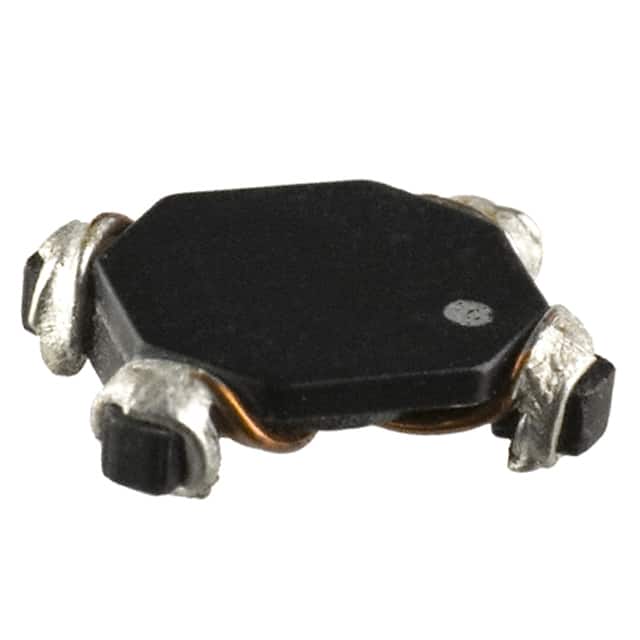

The Eaton CMS1-2-R is a surface mount common mode choke designed for power line filtering. It offers an inductance of 8 µH at 100 kHz, with a maximum current rating of 5.7A and a low DC resistance of 4 mOhm typical. The component is housed in a horizontal, 4 PC pad package measuring 9.40 mm x 7.20 mm x 2.60 mm. It operates over a wide temperature range of -40°C to 160°C. Compliance includes RoHS3, REACH unaffected, and MSL 1 unlimited. Common mode chokes are used to suppress electromagnetic interference (EMI) in power lines and signal lines. This component is suitable for a variety of applications including power supplies, inverters, and automotive electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.31 | $5.31 |
| 10+ | $4.37 | $4.37 |
| 25+ | $4.04 | $4.04 |
| 50+ | $3.81 | $3.81 |
| 100+ | $3.59 | $3.59 |
| 250+ | $3.55 | $3.55 |
| 2,000+ | $2.90 | $2.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Horizontal, 4 PC Pad surface mount package.
-40°C to 160°C.
Yes, it is RoHS3 compliant (unverified).
8 µH at 100 kHz.
5.7A.
4 mOhm typical.
Surface mount.
