Mfr Part #:

CMS04N06Y-HF

Name: CMS04N06Y-HF
Brand: Comchip Technology
SKU: CMS04N06Y-HF

Mfr Name: Comchip Technology

Description:

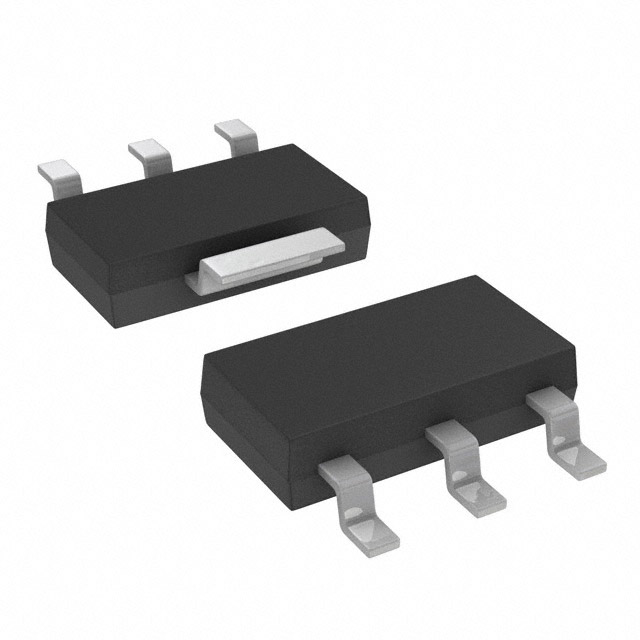

MOSFET N-CH 60V 4A SOT223

Stock on Request

CMS04N06Y-HF Description

Short technical summary and product information.

MOSFET N-CH 60V 4A SOT223

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

PANJIT

60V N-CHANNEL ENHANCEMENT MODE M

Category	Transistors - FETs, MOSFETs - Single
Manufacturer Name	Comchip Technology
Current	4A (Ta)
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	5.1 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds	509 pF @ 15 V
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Power Dissipation (Max)	3.1W (Ta)
Rds On (Max) @ Id, Vgs	100mOhm @ 3A, 10V
Supplier Device Package	SOT-223
Technology	MOSFET (Metal Oxide)
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2.5V @ 250µA
