Mfr Part #:

CMR05F181FPDP

Mfr Name: CDC

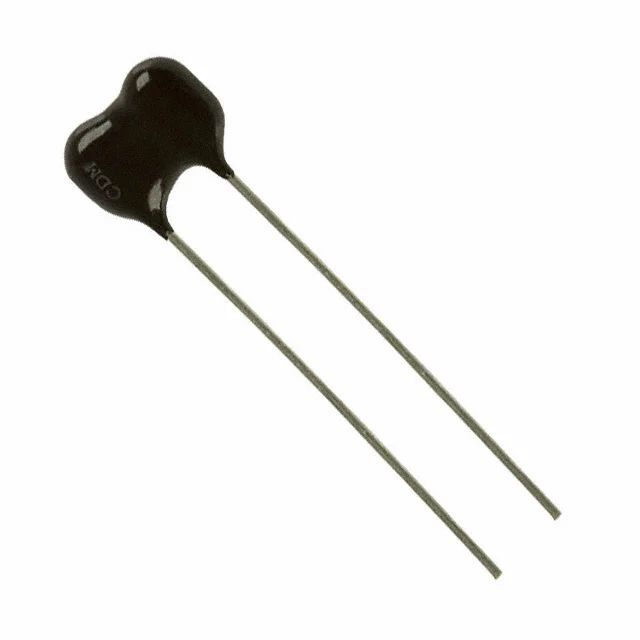

The CDE CMR05F181FPDP is a mica capacitor with a capacitance of 180 pF and a voltage rating of 500V. It features a ±1% tolerance and is designed for through-hole mounting.

✓ Total Stock: 43 pcs

$ Price Range: $0.10

CMR05F181FPDP Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	43 pcs On Request	43 pcs	On Request	1	On Request	On Request	2026-02-25 06:16:38	On Request	On Request

CMR05F181FPDP Description

Short technical summary and product information.

This CDE CMR05F181FPDP is a mica capacitor from the CMR series, designed for general-purpose applications. It offers a capacitance of 180 pF with a tight tolerance of ±1% and a maximum working voltage of 500V.

The capacitor has a dielectric material of mica, ensuring stable performance across its operating temperature range of -55°C to 150°C. Its dimensions are 11.70mm in length and 4.80mm in width, with a seated height of up to 9.40mm. The lead spacing is 5.70mm, and it is designed for through-hole mounting.

Packaged in bulk, this component is suitable for various electronic circuits requiring reliable capacitance.

Key specifications include: Capacitance: 180 pF Voltage Rating: 500 V Tolerance: ±1% Dielectric Material: Mica Operating Temperature: -55°C to 150°C Mounting Type: Through Hole Package: Radial

CMR05F181FPDP Quick Information

Product Type: Mica Capacitor

Series: CMR05

Canonical Name: CDE CMR05F181FPDP Mica Capacitor

Subcategory: Mica and PTFE Capacitor

CMR05F181FPDP Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

CMR05F181FPDP Estimated Pricing

Qty	Low	High
1+	$0.10	$0.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

CMR05F181FPDP Features

180 pF capacitance with ±1% tolerance.
Rated for 500V DC operation.
Mica dielectric for stable performance.
Wide operating temperature range.
Through-hole mounting for secure connections.

CMR05F181FPDP Applications

RF signal coupling and filtering.
High-voltage power supply circuits.
Precision timing and oscillator circuits.
Industrial control and instrumentation.

CMR05F181FPDP FAQs

5 frequently asked questions generated from this part’s specifications.

What is the capacitance of the CMR05F181FPDP capacitor?

The capacitance is 180 pF.

What is the voltage rating for the CDE CMR05F181FPDP?

The voltage rating is 500 V.

What is the operating temperature range for this mica capacitor?

The operating temperature range is -55°C to 150°C.

How is the CMR05F181FPDP capacitor mounted?

It is designed for through-hole mounting.

What is the RoHS status of the CMR05F181FPDP?

It is RoHS3 Compliant.
