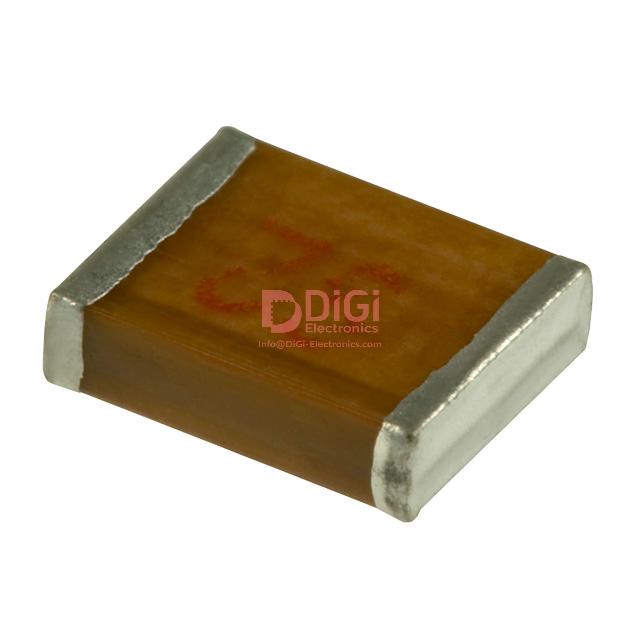

CMR05C3R5DPDR The Cornell Dubilier Electronics (CDE) CMR05C3R5DPDR is a Mica Capacitor with a capacitance of 330 pF and a tolerance of ±1%. It is designed for surface mount applications.
Mfr Part #:

CMR05C3R5DPDR

Available from 1 distributors
Mfr Name: Semco
Semco
The Cornell Dubilier Electronics (CDE) CMR05C3R5DPDR is a Mica Capacitor with a capacitance of 330 pF and a tolerance of ±1%. It is designed for surface mount applications.
✓ Total Stock: 33 pcs
$ Price Range: $0.10

CMR05C3R5DPDR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
33 pcs
On Request
33 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CMR05C3R5DPDR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Dielectric Material
Features
Halogen Free
Mounting Type
Operating Temperature
SVHC Present
Tolerance
View Similar Products (0)

CMR05C3R5DPDR Description

Short technical summary and product information.

The Cornell Dubilier Electronics (CDE) CMR05C3R5DPDR is a high-quality Mica Capacitor designed for various electronic applications. It features a capacitance value of 330 pF with a tight tolerance of ±1%, ensuring precise circuit performance.



This capacitor is rated for a voltage of 100V and operates within a temperature range of -55°C to 125°C. Its dielectric material is Mica, known for its excellent stability and low loss characteristics, making it suitable for RF applications.



The CMR05C3R5DPDR comes in a compact 1812 (4532 Metric) surface mount package, measuring 0.177 inches in length and 0.126 inches in width. The maximum seated height is 0.079 inches. Its features include RF, High Q, and Low Loss, making it a reliable choice for demanding designs.

CMR05C3R5DPDR Quick Information

Product Type: Mica Capacitor
Series: CMR05
Canonical Name: Cornell Dubilier Electronics (CDE) CMR05C3R5DPDR Mica Capacitor
Subcategory: Mica and PTFE

CMR05C3R5DPDR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

CMR05C3R5DPDR Estimated Pricing

Qty Low High
1+ $0.10 $0.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

CMR05C3R5DPDR Features

  • 330 pF capacitance with ±1% tolerance.
  • Rated for 100V DC operation.
  • Mica dielectric for stability and low loss.
  • 1812 surface mount package.
  • Suitable for RF, High Q, and Low Loss applications.

CMR05C3R5DPDR Applications

  • Ideal for RF signal filtering.
  • Used in high-frequency circuits.
  • Suitable for applications requiring stability.
  • Designed for surface mount integration.

CMR05C3R5DPDR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of the CMR05C3R5DPDR capacitor?

The capacitance of the CMR05C3R5DPDR is 330 pF.

What is the tolerance of the CMR05C3R5DPDR capacitor?

The tolerance of the CMR05C3R5DPDR is ±1%.

What is the rated voltage for the CMR05C3R5DPDR capacitor?

The rated voltage for the CMR05C3R5DPDR is 100V.

What is the operating temperature range for the CMR05C3R5DPDR capacitor?

The operating temperature range for the CMR05C3R5DPDR is -55°C to 125°C.

What are the dimensions of the CMR05C3R5DPDR capacitor?

The dimensions of the CMR05C3R5DPDR are 0.177" L x 0.126" W (4.50mm x 3.20mm).

What is the package type for the CMR05C3R5DPDR capacitor?

The CMR05C3R5DPDR capacitor is in an 1812 (4532 Metric) surface mount package.

What dielectric material is used in the CMR05C3R5DPDR capacitor?

The dielectric material used in the CMR05C3R5DPDR capacitor is Mica.
