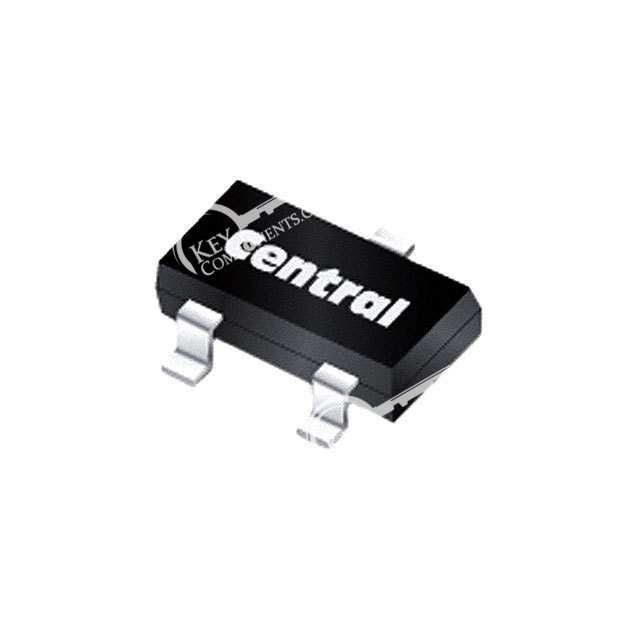

CMPZ5237B TR The Central Semiconductor Corp CMPZ5237B TR is a Zener Diode with a nominal voltage of 8.2V and a power dissipation of 350mW. It is supplied in a surface-mount SOT-23 package.
Mfr Part #:

CMPZ5237B TR

Available from 1 distributors
Mfr Name: Central Semiconductor Corp
Central Semiconductor Corp
The Central Semiconductor Corp CMPZ5237B TR is a Zener Diode with a nominal voltage of 8.2V and a power dissipation of 350mW. It is supplied in a surface-mount SOT-23 package.
✓ Total Stock: 6,100 pcs
$ Price Range: $0.99

CMPZ5237B TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
6,100 pcs
On Request
6100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CMPZ5237B TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Forward Voltage
Impedance
Mounting Type
Operating Temperature
Power Dissipation
Supplier Device Package
Tolerance
View Similar Products (0)

CMPZ5237B TR Description

Short technical summary and product information.

The Central Semiconductor Corp CMPZ5237B TR is a Zener Diode designed for voltage regulation applications. It features a nominal Zener voltage of 8.2V with a tolerance of ±5%. The diode can handle a maximum power dissipation of 350mW.



This component has a low reverse leakage current of 3µA at 6.5V and a maximum forward voltage of 900mV at 10mA. It operates within a temperature range of -65°C to 150°C.



The CMPZ5237B TR is packaged in a TO-236-3, SC-59, SOT-23-3 (SOT-23) case, suitable for surface mounting. Its compact size and reliable performance make it suitable for various electronic circuits requiring stable voltage references.

CMPZ5237B TR Quick Information

Product Type: Zener Diode
Canonical Name: Central Semiconductor Corp CMPZ5237B TR Zener Diode
Subcategory: Zener Diodes

CMPZ5237B TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CMPZ5237B TR Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

CMPZ5237B TR Features

  • 8.2V nominal Zener voltage rating.
  • 350mW maximum power dissipation.
  • ±5% voltage tolerance.
  • Surface mount SOT-23 package.
  • Wide operating temperature range.

CMPZ5237B TR Applications

  • Used for voltage regulation.
  • Suitable for voltage clamping.
  • Ideal for power supply circuits.
  • Applicable in signal conditioning.

CMPZ5237B TR FAQs

4 frequently asked questions generated from this part’s specifications.
What is the nominal Zener voltage of the CMPZ5237B TR?

The nominal Zener voltage is 8.2V.

What is the maximum power dissipation for this Zener diode?

The maximum power dissipation is 350mW.

What is the package type for the CMPZ5237B TR?

The package type is SOT-23.

What is the operating temperature range?

The operating temperature range is -65°C to 150°C.
