| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
185 pcs
|
185 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Forward Voltage | |
| Impedance (Max) (Zzt) | |
| Lead Style | |
| Marking Code | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Power | |
| Power Dissipation (Maximum @ TA = 25 °C, FR -4 Epoxy PC Board, copper pad area 1.4 mm²) | |
| Power Dissipation (Maximum @ TA = 25 °C, FR -4 Epoxy PC Board, copper pad area 4.0 mm²) | |
| Power Dissipation (Maximum @ TA = 50 °C, ceramic or aluminum core PC board, copper pad area 4.0 mm²) | |
| Reverse Leakage Current | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Test Current | |
| Thermal Resistance Junction-to-Ambient | |
| Tolerance | |
| Voltage | |
| Zener Impedance | |
| Zener Voltage |

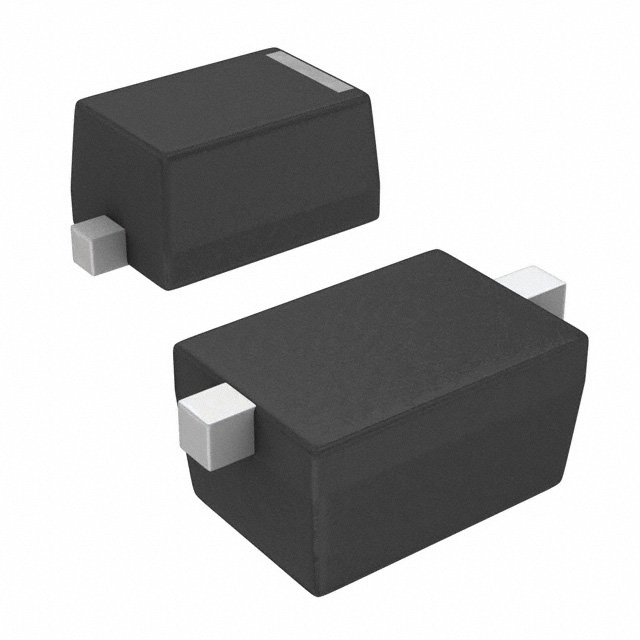

The CMOZ10V TR PBFREE is a surface mount silicon zener diode from Central Semiconductor Corp, part of the CMOZ2V4-CMOZ43V series. It provides a nominal zener voltage of 10V with ±5% tolerance, tested at 5mA. The device offers maximum power dissipation of 300mW on FR-4 epoxy PC board with 4.0mm² copper pad area at 25°C, with alternative ratings of 350mW on ceramic or aluminum core boards and 250mW on FR-4 with smaller pad area.
Electrical characteristics include a maximum zener impedance of 20Ω at 5mA, low reverse leakage current of 0.2μA at 7V, and a forward voltage of 0.9V maximum at 10mA. The diode operates over a junction temperature range of -65°C to 150°C, with a thermal resistance of 417°C/W.
The device is packaged in the ultra-miniature SOD-523 case, suitable for high-density surface mount applications. It is RoHS3 compliant and lead-free (PBFREE). Typical applications include voltage regulation, overvoltage protection, and reference voltage generation in portable and power management circuits.
The nominal zener voltage is 10V, with a minimum of 9.50V and maximum of 10.50V at a test current of 5mA.
The maximum power dissipation is 300mW on FR-4 epoxy PC board with 4.0mm² copper pad area at 25°C. It can also dissipate 350mW on ceramic or aluminum core boards at 50°C, and 250mW on FR-4 with 1.4mm² pad area.
The maximum forward voltage is 0.9V at a forward current of 10mA.
The operating and storage junction temperature range is -65°C to 150°C.
The device is available in a SOD-523 surface mount package.
The maximum reverse leakage current is 0.2μA at a reverse voltage of 7V.
The zener voltage tolerance is ±5%.
