| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Gain | |
| Mounting Type | |
| Noise Figure | |
| P1dB | |
| Supplier Device Package | |
| Voltage Supply |
The CMM6004-SC-0G0T from M/A-COM is a general-purpose RF Amplifier IC. It covers a wide frequency range from 50MHz to 3GHz, making it suitable for various wireless applications.
Key electrical specifications include a gain of 14.5dB, a noise figure of 2.1dB, and a P1dB of 23.5dBm. The device operates with a supply voltage between 3V and 5V and draws a current of 150mA.

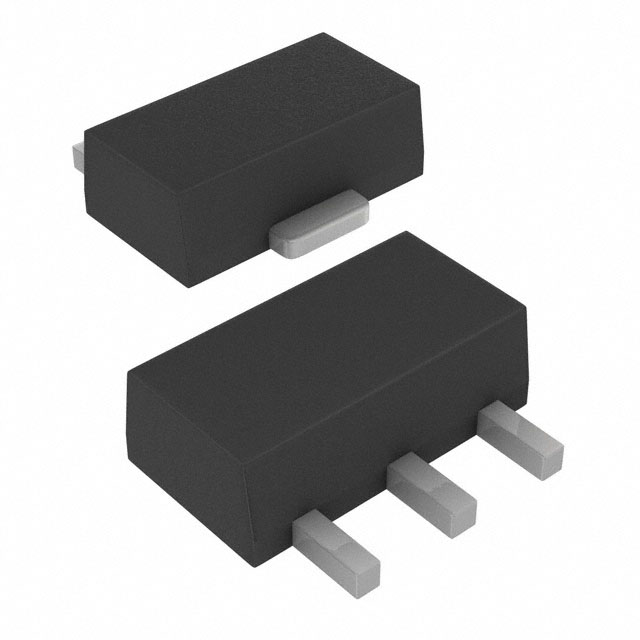

This component is available in a surface mount package, specifically the SOT-89-3 (TO-243AA) configuration, supplied on tape and reel. Its obsolete lifecycle status indicates it may be difficult to source.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CMM6004-SC-0G0T operates from 50MHz to 3GHz.
The gain is 14.5dB.
The noise figure is 2.1dB.
The P1dB is 23.5dBm.
The supply voltage range is 3V to 5V.
The package is TO-243AA with a SOT-89-3 supplier device package.
