| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Tolerance |

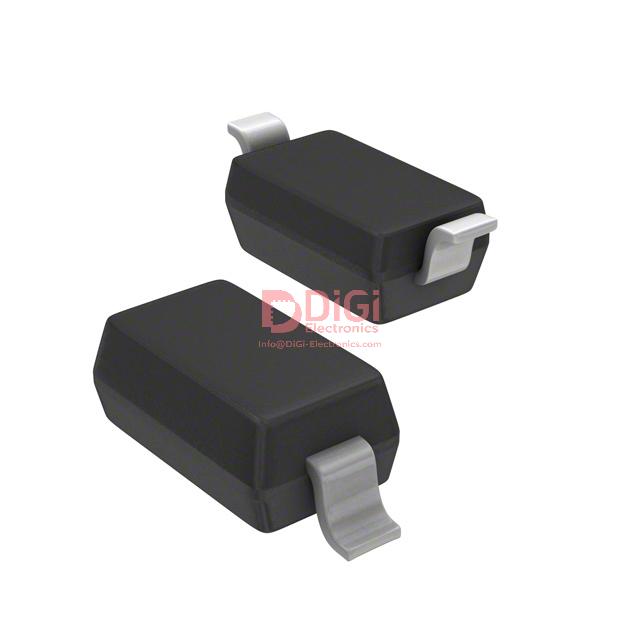

The Central Semiconductor Corp CMHZ5261BTR is a single Zener diode designed for voltage regulation applications. It features a nominal Zener voltage of 47V with a tolerance of ±5%. The diode has a maximum power dissipation of 500mW and a low reverse leakage current of 100 nA at 36V.
This component is suitable for surface mount assembly, utilizing the compact SOD-123 package. Its operating temperature range is from -65°C to 150°C, making it versatile for various environmental conditions. The forward voltage is a maximum of 900mV at 10mA, and its impedance is rated at a maximum of 105 Ohms.
The CMHZ5261BTR is supplied in Tape & Reel packaging, indicated by the 'TR' in its part number, facilitating automated assembly processes. Its RoHS, REACH, and MSL compliance statuses are noted, though with low confidence due to unverified data.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
47V.
±5%.
500mW.
105 Ohms.
100nA at 36V.
Maximum 900mV at 10mA forward current.
SOD-123 surface mount package.
