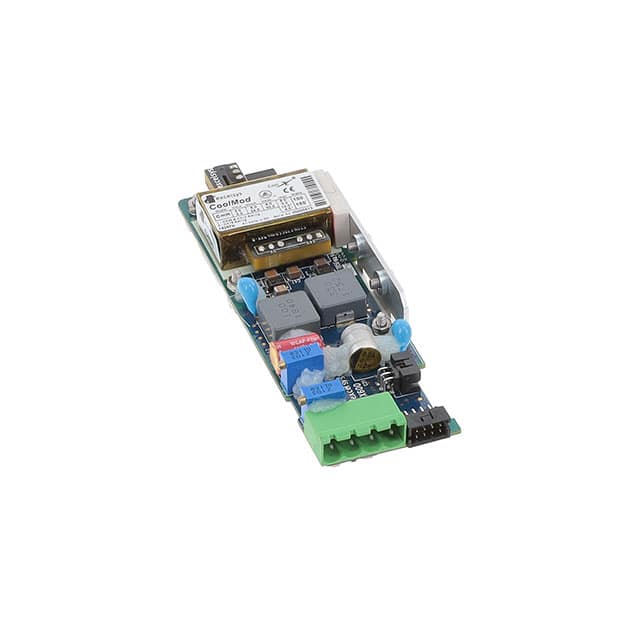

The Advanced Energy CMH is a versatile dual output DC power module designed for configurable power supply systems. It provides two isolated outputs: one adjustable from 3V to 6V at up to 10A, and another adjustable from 3V to 30V at up to 4A. The total power output is rated at 180W.
This module integrates features such as remote on/off, remote sense, and user adjustability, enhancing its flexibility in various applications. It supports PMBus digital communications, allowing for advanced monitoring and control capabilities. The CoolX®1800 series, to which this module belongs, is known for its high efficiency (91%) and reliability, with an MTBF exceeding 200,000 hours.
Compliance certifications include IEC60950 and IEC62368-1 for industrial applications, and it is also suitable for medical applications with IEC60601-1 and IEC60601-1-2 compliance. The module is designed for operation up to 5000m altitude and features level 4 input surge protection. Its dimensions are 262 mm x 127 mm x 41 mm.
The CMH module provides two outputs: V1 is adjustable from 3V to 6V, and V2 is adjustable from 3V to 30V.
The V1 output can deliver up to 10A, and the V2 output can deliver up to 4A.
The CMH module has a total power output of 180W.
Yes, the CMH module supports PMBus digital communications.
Key features include remote on/off, remote sense, user adjustability, and PMBus monitoring and control capability.
The dimensions of the CMH module are 262 mm x 127 mm x 41 mm.
The CMH module complies with IEC60950 and IEC62368-1, and also meets SEMI F47*.
