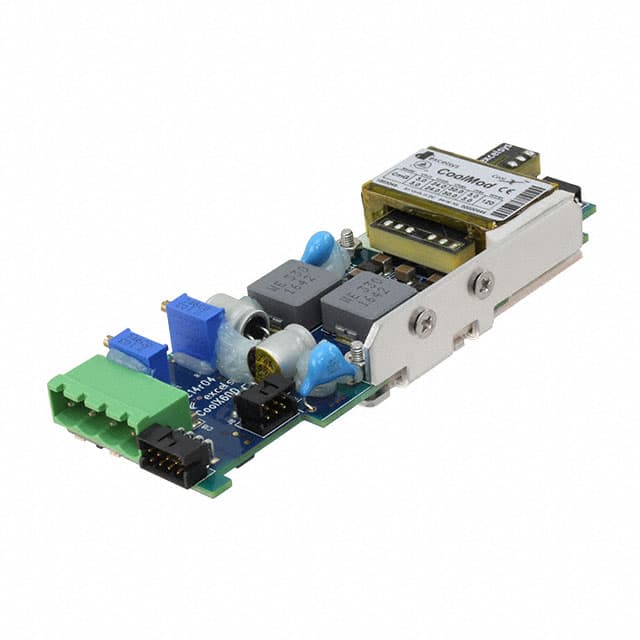

The Advanced Energy CMG is a configurable DC output module designed for modular power supply systems. It provides up to 120W of power with dual outputs, each capable of delivering 3A. The nominal output voltage is 24V, with an adjustable range from 3V to 30V, offering flexibility for various applications.
This module supports PMBus digital communications for monitoring and control, enhancing system integration and management. It operates with high efficiency, rated at 91%, and features variable fan speed control for thermal management. The module is built for reliability with a high MTBF rating and input surge protection.
Designed as part of the CoolX1800 series, the CMG module is suitable for integration into larger power solutions. Its specifications make it a robust choice for industrial, medical, and other demanding applications requiring configurable and reliable power.
Key electrical characteristics include dual 3A outputs, a 120W total power rating, and an adjustable voltage range. The module's dimensions are 262 mm x 127 mm x 41 mm.
The nominal output voltage is 24V, adjustable from 3V to 30V.
Each of the two outputs can deliver a maximum current of 3A.
The CMG module has a total power output of 120W.
Yes, the CMG module supports PMBus for digital monitoring and control.
The module has a high efficiency rating of 91%.
The dimensions are 262 mm x 127 mm x 41 mm.
