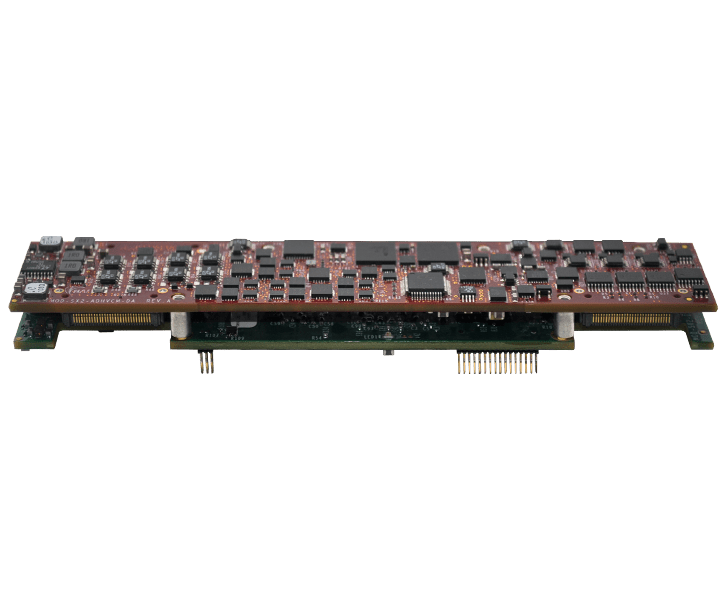

The Advanced Energy CMF is a DC Output Module designed for configurable power supply systems. It provides a 48V nominal output voltage with a maximum current of 18.75A, delivering up to 900W of power. This module is part of the CoolX1800 series, a high-efficiency, intelligent, and reliable modular power supply platform.
Key features include Remote On/Off, Remote Sense, and User Adjustable settings, offering flexibility in system integration. The CMF module supports analog and digital management capabilities, including PMBus monitoring and control. It is designed for high reliability with features like Level 4 input surge protection and is safety approved to 5000m altitude.
The CMF module integrates Analog-to-Digital (A/D) and Digital-to-Analog (D/A) I/O functionalities. It provides eight independent 16-bit SAR A/D input channels with a maximum input voltage range of ±100V, and eight independent 16-bit D/A output channels offering ±10VDC output with a maximum current of 10mA. This combination mitigates SWaP-C challenges by streamlining system architecture.
This module is RoHS3 Compliant and has an MSL of 1 Unlimited. It is suitable for various applications including medical equipment, industrial machines, test and measurement, and telecommunications.
The CMF module has a nominal output voltage of 48V.
The CMF module can deliver up to 900W of power.
The CMF module has a maximum current rating of 18.75A.
Key features include Remote On/Off, Remote Sense, and User Adjustable settings.
The CMF module has eight independent 16-bit SAR A/D input channels.
The maximum input voltage for the A/D channels is ±100V.
The CMF module offers eight independent 16-bit D/A output channels.
