| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
70 pcs
|
70 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Forward Voltage | |
| Impedance (Max) (Zzt) | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Power | |
| Power Dissipation | |
| Reverse Leakage Current | |
| Supplier Device Package | |
| Thermal Resistance Junction-to-Ambient | |
| Tolerance | |
| Voltage | |
| Zener Impedance (Max) | |
| Zener Voltage (Nominal) |

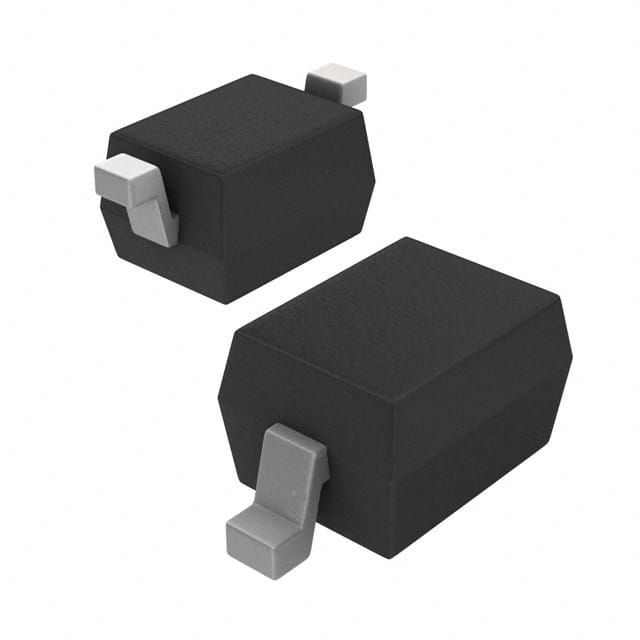

The CMDZ5260B TR PBFREE is a 43V Zener Diode from Central Semiconductor Corp, part of the CMDZ52xxB series. It is designed for voltage regulation in surface mount applications.
Key electrical characteristics include a nominal zener voltage of 43V with ±5% tolerance, maximum zener impedance of 93Ω, and a maximum reverse leakage current of 100nA at 33V. Forward voltage is 900mV at 10mA. Power dissipation is 250mW.
The device is housed in a SOD-323 (SC-76) surface mount package with a thermal resistance of 500°C/W from junction to ambient. It operates over a temperature range of -65°C to 150°C.
Applications include voltage regulation, overvoltage protection, and general purpose zener diode uses in industrial, commercial, and consumer electronics. The part is RoHS3 compliant and has MSL level 1 for unlimited floor life.
43V
250mW
900mV at 10mA
SOD-323 (SC-76)
±5%
100nA at 33V
-65°C to 150°C
