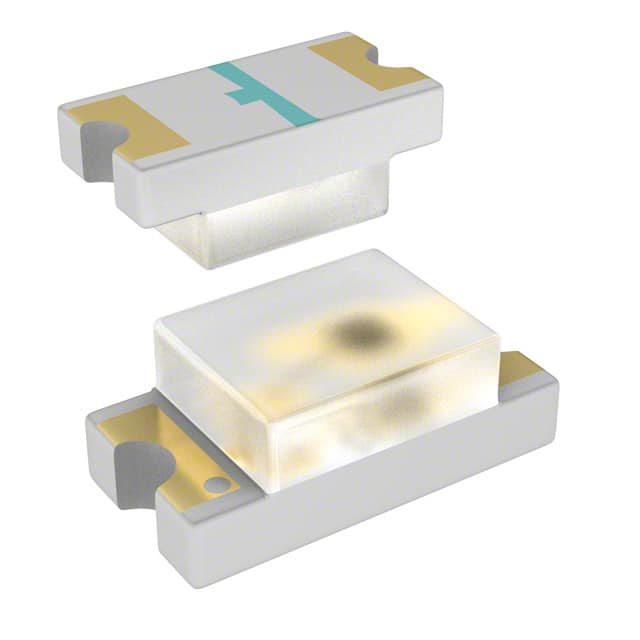

CMDA19AY7D1S The Visual Communications Company CMDA19AY7D1S is a green LED with a peak wavelength of 570nm. It features a diffused lens and a 0603 package for surface mounting.
Mfr Part #:

CMDA19AY7D1S

Available from 1 distributors
Mfr Name: Visual Communications Company - VCC
Visual Communications Company - VCC
The Visual Communications Company CMDA19AY7D1S is a green LED with a peak wavelength of 570nm. It features a diffused lens and a 0603 package for surface mounting.
✓ Total Stock: 100 pcs
$ Price Range: $0.08

CMDA19AY7D1S Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CMDA19AY7D1S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Current Rating
Dimensions
Height
Height (Max)
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Supplier Device Package
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

CMDA19AY7D1S Description

Short technical summary and product information.

This Visual Communications Company CMDA19AY7D1S is a discrete LED designed for indication purposes. It emits green light with a peak wavelength of 570nm and a typical luminous intensity of 15mcd at 20mA test current. The LED has a typical forward voltage of 2.2V.



Featuring a diffused lens with a flat top, the LED has a rectangle shape measuring 1.00mm x 0.80mm. The overall component dimensions are 1.60mm in length and 0.80mm in width, with a maximum height of 0.60mm. It is designed for surface mounting and comes in a 0603 (1608 Metric) package.



The wide viewing angle of 170° ensures visibility from various directions. This component is suitable for applications requiring clear visual indication in a compact form factor.

CMDA19AY7D1S Quick Information

Product Type: LED
Series: CMDA19
Canonical Name: Visual Communications Company - VCC CMDA19AY7D1S LED
Subcategory: Discrete LED

CMDA19AY7D1S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CMDA19AY7D1S Estimated Pricing

Qty Low High
1+ $0.08 $0.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

CMDA19AY7D1S Features

  • Green LED with 570nm peak wavelength.
  • 15mcd typical luminous intensity.
  • 2.2V typical forward voltage.
  • 0603 surface mount package.
  • 170° wide viewing angle.

CMDA19AY7D1S Applications

  • Ideal for status indication.
  • Suitable for compact designs.
  • Used in electronic assemblies.
  • General purpose visual signaling.

CMDA19AY7D1S FAQs

5 frequently asked questions generated from this part’s specifications.
What is the forward voltage of the CMDA19AY7D1S LED?

The typical forward voltage for the CMDA19AY7D1S LED is 2.2V.

What is the peak wavelength of the CMDA19AY7D1S LED?

The peak wavelength of the CMDA19AY7D1S LED is 570nm.

What is the luminous intensity of the CMDA19AY7D1S LED?

The typical luminous intensity of the CMDA19AY7D1S LED is 15mcd at 20mA.

What package type is the CMDA19AY7D1S LED?

The CMDA19AY7D1S LED is supplied in a 0603 (1608 Metric) package.

How is the CMDA19AY7D1S LED mounted?

The CMDA19AY7D1S LED is designed for surface mounting.
