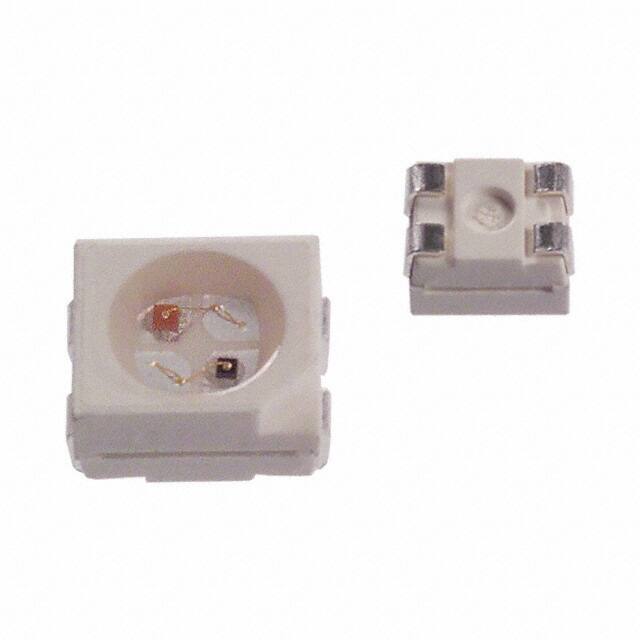

The Visual Communications Company CMD6722SRUGCTR8 is a surface mount (SMD) LED designed for high-speed auto-insertion. This component offers dual color output, providing both Green and Red light from a single package.
Key electrical characteristics include a typical forward voltage of 2.1V for Green and 1.7V for Red, both at a 20mA test current. The luminous intensity is rated at 25mcd for Green and 40mcd for Red. The peak wavelength is 565nm for Green and 660nm for Red, with a wide viewing angle of 120 degrees.
This LED is housed in a 4-PLCC package with dimensions of 3.20mm L x 2.80mm W and a maximum height of 2.10mm. It is compatible with convection and vapor-phase reflow soldering processes. The LED is supplied on tape and reel, with 2000 pieces per reel, enabling high-density placement in automated assembly.
Designed for reliability, the CMD6722SRUGCTR8 undergoes stringent process controls and qualification testing. It operates within a temperature range of -40°C to +85°C and has a maximum power dissipation of 105mW. The reverse voltage is 5.0V at 100µA.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This LED offers both Green and Red colors.
The typical forward voltage is 2.1V for Green and 1.7V for Red.
The typical luminous intensity is 25mcd for Green and 40mcd for Red.
The viewing angle is 120 degrees.
The operating and storage temperature range is -40°C to +85°C.
It is supplied in a 4-PLCC package.
There are 2000 pieces per reel.
