| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,292 pcs
|
2292 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Gain | |
| Mounting Style | |
| Noise Figure | |
| Operating Temperature | |
| Power Dissipation | |
| SVHC Present | |
| Test Frequency | |
| Voltage |

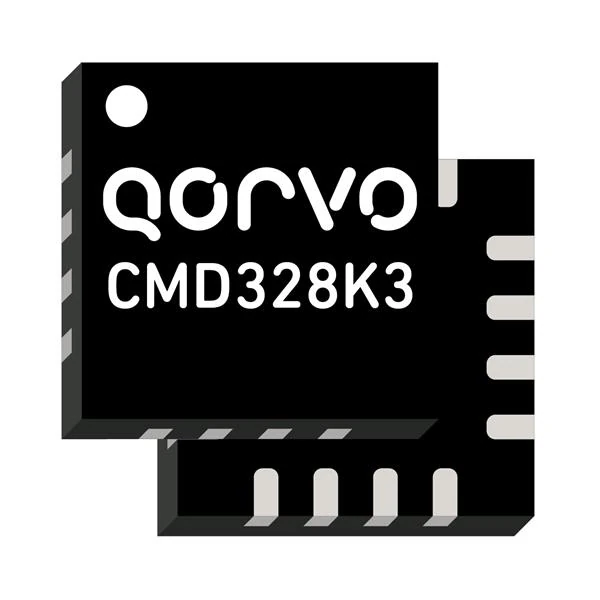

The Qorvo US Inc. CMD328K3 is a Low Noise Amplifier (LNA) designed for RF and Wireless applications. This component operates across a frequency range of 6 GHz to 18 GHz, offering a typical gain of 27 dB and a low noise figure of 1.5 dB.
Key electrical characteristics include a P1dB compression point of 12 dBm and a third-order intercept point (OIP3) of 24 dBm. It requires an operating supply voltage of 3 V and draws a typical supply current of 52 mA, with a power dissipation of 490 mW.
The CMD328K3 is housed in a QFN-16 package and is designed for surface-mount (SMD/SMT) applications. It operates within a temperature range of -40 °C to +85 °C. The part is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CMD328K3 operates from 6 GHz to 18 GHz.
The typical gain of the CMD328K3 is 27 dB.
The typical noise figure for the CMD328K3 is 1.5 dB.
The P1dB compression point is 12 dBm.
The OIP3 for the CMD328K3 is 24 dBm.
The CMD328K3 requires a 3 V operating supply voltage.
The CMD328K3 operates from a minimum of -40 °C to a maximum of +85 °C.
