| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Configuration | |
| Industrial Grade | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Medical Grade | |
| Military Grade | |
| Storage Temperature | |
| Tape & Reel | |
| Viewing Angle |

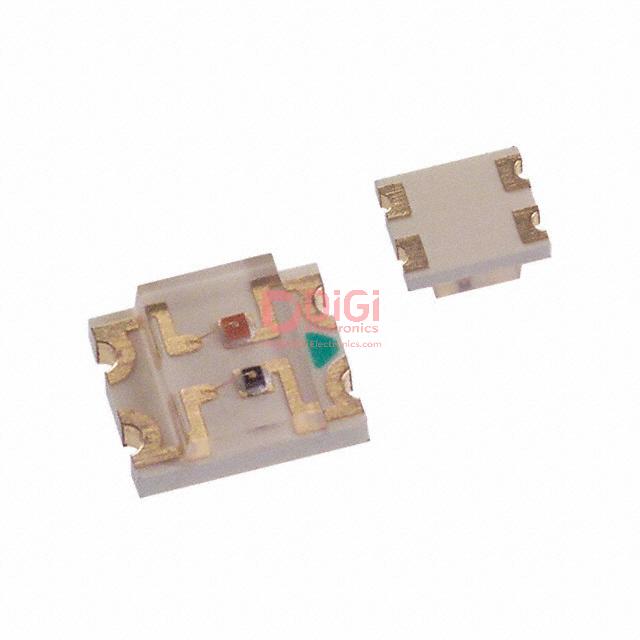

The Visual Communications Company - VCC CMD15-22SRUGC/TR8 is a discrete LED indicator capable of displaying both green and red light. It features an independent configuration, allowing for separate control of the two colors.
Key electrical specifications include a typical forward voltage of 2.1V for green and 1.7V for red, both at a test current of 20mA. The luminous intensity is rated at 12mcd for green and 15mcd for red. The lens is clear and colorless, with a rectangular flat-top style measuring 2.70mm x 2.00mm.
This LED indicator is supplied in a Tape & Reel package, compatible with the 1210 (3225 Metric) case size. Its active status indicates it is currently available for use in new designs.
This component is suitable for various indicator applications where dual-color functionality is required. Its compact size and standard packaging make it easy to integrate into PCB designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 2.1V for green and 1.7V for red, both at a test current of 20mA.
The luminous intensity is 12mcd for green and 15mcd for red, tested at 20mA.
This LED is supplied in a Tape & Reel package.
The lens measures 2.70mm in width and 2.00mm in length.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
