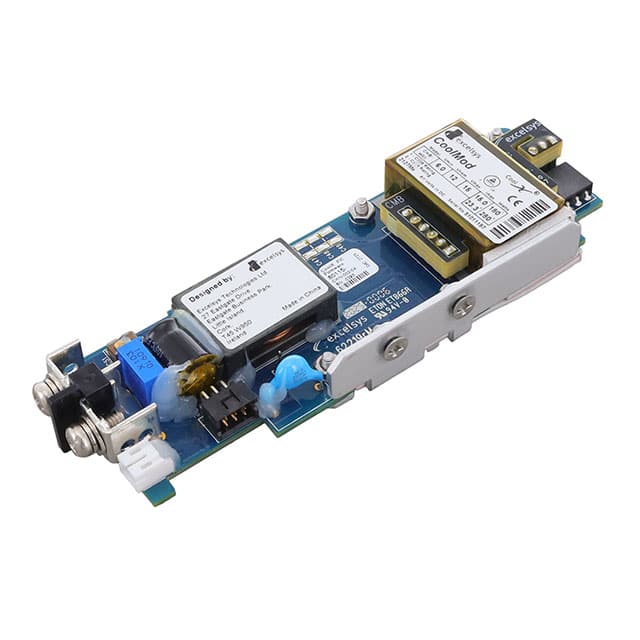

The Advanced Energy CMB-W01 is a single-output DC power module designed for use within the CoolX1800 series. It delivers up to 280W of power with an adjustable output voltage ranging from 1V to 15V and a maximum current of 23.3A.
Key features include Remote On/Off and Remote Sense capabilities, allowing for greater system integration and control. This module is designed for high reliability, with a specified MTBF of over 200,000 hours and an efficiency of 91%.
The CMB-W01 is built to operate safely at altitudes up to 5000 meters and features variable fan speed control for thermal management. Its dimensions are 262 mm x 127 mm x 41 mm.
This module is suitable for various industrial and medical applications requiring configurable and reliable power solutions.
The CMB-W01 module delivers a maximum power output of 280 W.
The voltage for the CMB-W01 module can be adjusted from 1V to 15V.
The CMB-W01 module has a maximum current rating of 23.3 A.
The CMB-W01 module has 1 output.
Key features include Remote On/Off, Remote Sense, and User Adjustable settings.
The MTBF for the CMB-W01 module is greater than 200,000 hours.
The CMB-W01 module has an efficiency of 91%.
