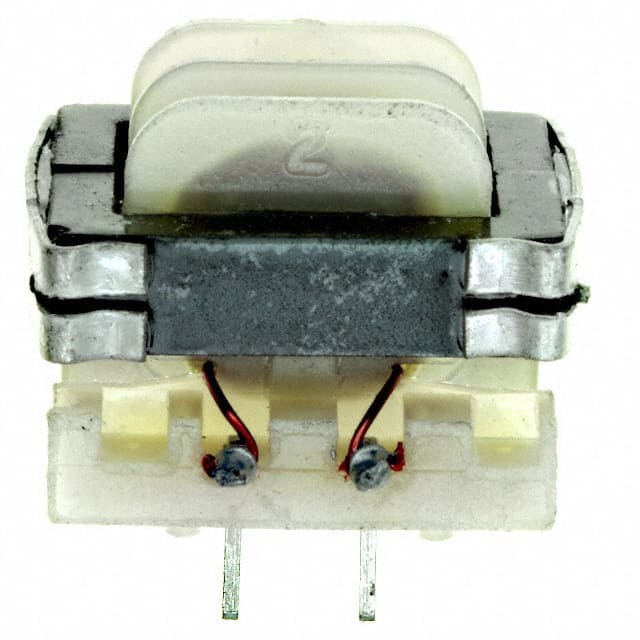

CM9900-334 Common mode choke with 330µH inductance at 1kHz, 1.7A max current, and 58mΩ DCR. Through hole package with vertical 4 PC pin configuration.
Mfr Part #:

CM9900-334

Available from 2 distributors
Mfr Name: API Delevan Inc.
API Delevan Inc.
Common mode choke with 330µH inductance at 1kHz, 1.7A max current, and 58mΩ DCR. Through hole package with vertical 4 PC pin configuration.
✓ Total Stock: 130 pcs
$ Price Range: $9.35

CM9900-334 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
128 pcs
On Request
128 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CM9900-334 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Height (Max)
Inductance @ Frequency
Mounting Type
Number of Lines
Operating Temperature
View Similar Products (0)

CM9900-334 Description

Short technical summary and product information.

The CM9900-334 is a common mode choke manufactured by API Delevan Inc. It features an inductance of 330 µH measured at 1 kHz, with a maximum DC resistance of 58 mΩ and a current rating of 1.7 A. The component is designed for through hole mounting in a vertical, 4 PC pin package, making it suitable for power line filtering applications.



With an operating temperature range of -55°C to 125°C, this choke can withstand harsh environments. The two-line configuration provides common mode noise suppression in differential signal or power lines. The package dimensions are 21.30 mm length, 18.80 mm width, and a maximum height of 17.00 mm.



This component is RoHS3 compliant and has an MSL rating of 1 (unlimited), indicating no moisture sensitivity restrictions. It is commonly used in power supplies, inverters, and other electronic equipment requiring electromagnetic interference (EMI) filtering.

CM9900-334 Quick Information

Product Type: Common Mode Choke
Series: CM9900
Canonical Name: Common Mode Choke, 330 µH, 1.7 A, Through Hole, Vertical 4 PC Pin
Subcategory: Through Hole Common Mode Choke

CM9900-334 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CM9900-334 Estimated Pricing

Qty Low High
100+ $9.35 $9.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

CM9900-334 Features

  • 330 µH inductance at 1 kHz.
  • 1.7 A maximum current rating.
  • 58 mΩ maximum DC resistance.
  • Through hole vertical 4 PC pin package.
  • Operating temperature range -55°C to 125°C.

CM9900-334 Applications

  • Used in power line common mode filtering.
  • Suitable for EMI suppression in power supplies.
  • Ideal for differential signal noise reduction.
  • Applied in industrial and automotive electronics.

CM9900-334 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the CM9900-334?

330 µH at 1 kHz.

What is the current rating?

1.7 A maximum.

What is the DC resistance?

58 mΩ maximum.

What is the operating temperature range?

-55°C to 125°C.

What is the mounting type?

Through hole.

What is the package/case?

Vertical, 4 PC Pin.

Is it RoHS compliant?

Yes, RoHS3 compliant (unverified).
