| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
322 pcs
|
322 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Height | |
| Lead Style | |
| Length | |
| Load Capacitance | |
| Mounting Style | |
| SVHC Present | |
| Termination Style | |
| Tolerance | |
| Width |

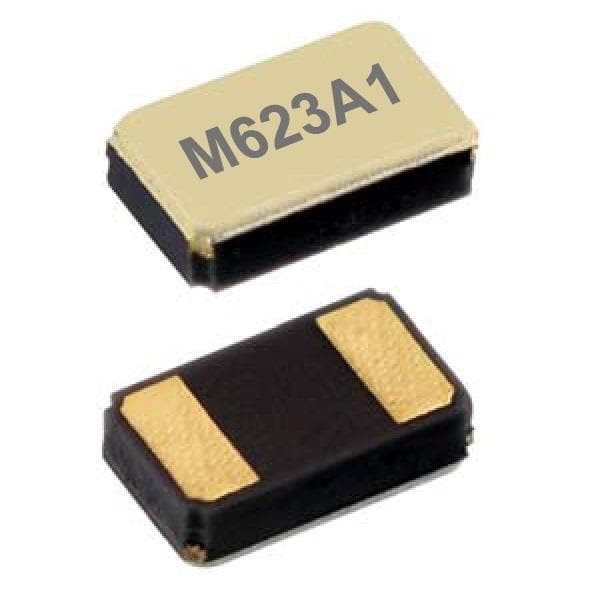

This Micro Crystal CM8V-T1A-32.768KHZ-7PF-20PPM-TA-QC is a tuning fork crystal designed for precise frequency control. It operates at a nominal frequency of 32.768 kHz with a tight tolerance of ±20 PPM.
The crystal features a load capacitance of 7 pF and a drive level of 0.5 uW. Its equivalent series resistance is 70 kOhms. The component is specified for an operating temperature range of -40 C to +85 C.
Packaged in an SMD/SMT compatible format, this crystal has dimensions of 1.2 mm width, 0.6 mm height, and 2 mm length. The termination style is also SMD/SMT, facilitating surface mounting on printed circuit boards.
Compliance information indicates RoHS3 compliance, Moisture Sensitivity Level 1, and REACH unaffected status. The unit weight is 108.556 mg.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency is 32.768 kHz.
The frequency tolerance is ±20 PPM.
The load capacitance is 7 pF.
The operating temperature range is -40 C to +85 C.
The crystal measures 1.2 mm in width, 0.6 mm in height, and 2 mm in length.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
