| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Country of Origin | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Load Capacitance | |
| Mounting Type | |
| Number of Pins |

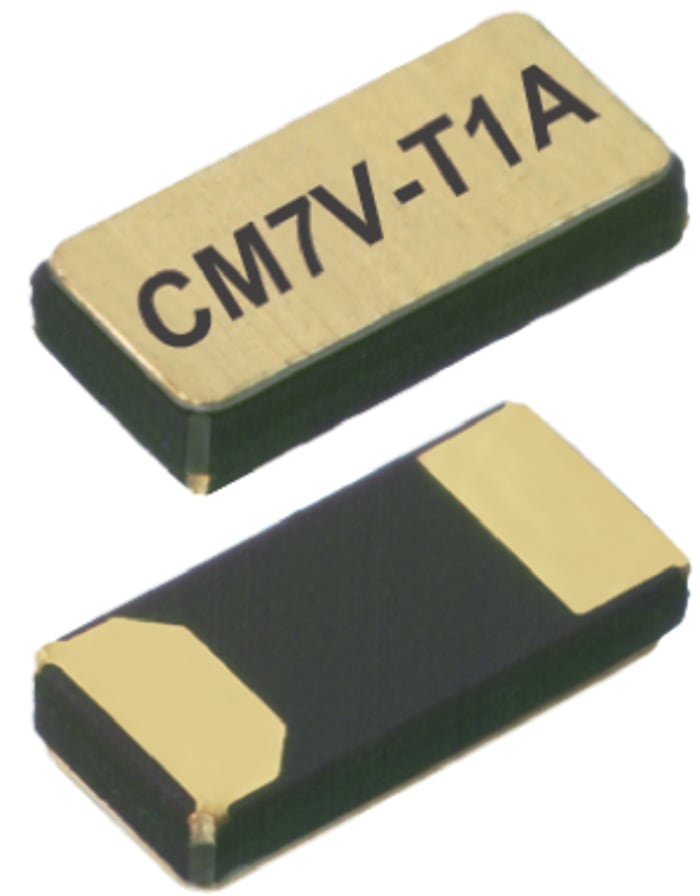

This Micro Crystal CM7V-T1A is a surface-mount crystal unit designed for applications requiring precise frequency control. It operates at a standard frequency of 32.768kHz with a load capacitance of 12.5pF. The frequency tolerance is ±10ppm, ensuring stable performance.
The crystal features a compact SMD package with dimensions of 3.2mm x 1.5mm x 0.65mm, making it suitable for space-constrained designs. It is rated for an operating temperature range of -40°C to 85°C and meets the AEC-Q200 automotive standard.
With its 2-pin configuration and tape and reel packaging, the CM7V-T1A is designed for automated assembly processes. Its specifications make it a reliable choice for various electronic circuits requiring a stable timekeeping or frequency reference.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency is 32.768kHz.
The load capacitance is 12.5pF.
The frequency tolerance is ±10ppm.
The operating temperature range is -40°C to 85°C.
The dimensions are 3.2mm x 1.5mm x 0.65mm.
Yes, the CM7V-T1A crystal is AEC-Q200 qualified.
The crystal is in an SMD package.
