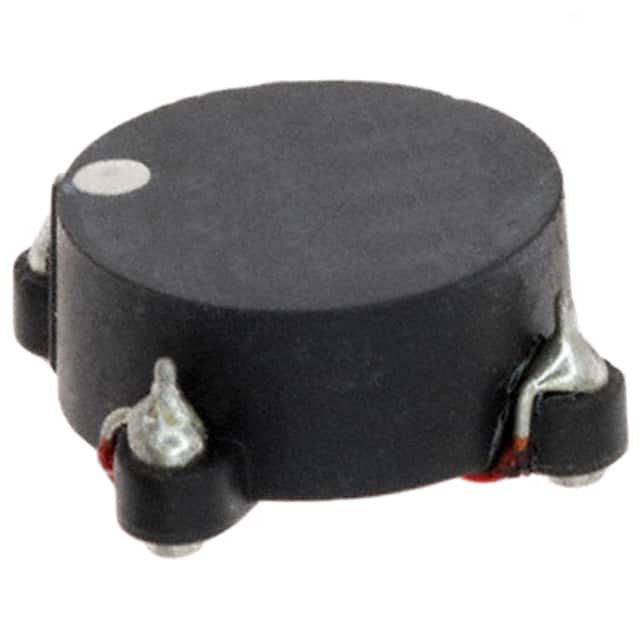

CM6560-754
API Delevan Inc.
The CM6560-754 is a 750µH common mode choke from API Delevan Inc., rated for 3A with 34mOhm maximum DC resistance.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
71 pcs
|
71 pcs | On Request | 1 | On Request | On Request | 1647 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature |
The CM6560R-754 from API Delevan is a common mode choke designed for filtering common mode noise in power and signal lines. It provides 750 µH inductance at 10 kHz and supports a continuous current of up to 3A, making it suitable for moderate power applications.
The choke has a maximum DC resistance of 34 mOhm, which helps minimize power loss and heat generation. It is a 2-line configuration, ideal for differential pair filtering. The component is rated for operation over a temperature range of -55°C to 105°C, allowing use in demanding environments.
The device is surface mountable with a horizontal, 4 PC pad package. Its compact footprint measures 16.00mm by 16.00mm with a maximum height of 8.13mm, facilitating space-constrained PCB layouts. The package is designed for reliable soldering and mechanical stability.
| Qty | Low | High |
|---|---|---|
| 1+ | $28.49 | $28.49 |
| 10+ | $23.43 | $23.43 |
| 25+ | $21.68 | $21.68 |
| 50+ | $20.45 | $20.45 |
| 100+ | $19.29 | $19.29 |
| 300+ | $18.76 | $18.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 750 µH at 10 kHz.
The maximum current rating is 3A.
The maximum DC resistance is 34 mOhm.
The operating temperature range is -55°C to 105°C.
The package is Horizontal, 4 PC Pad, surface mount.
It has 2 lines.
The RoHS status is listed as RoHS3 Compliant, but this is unverified and should be treated as low confidence.
