| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature |

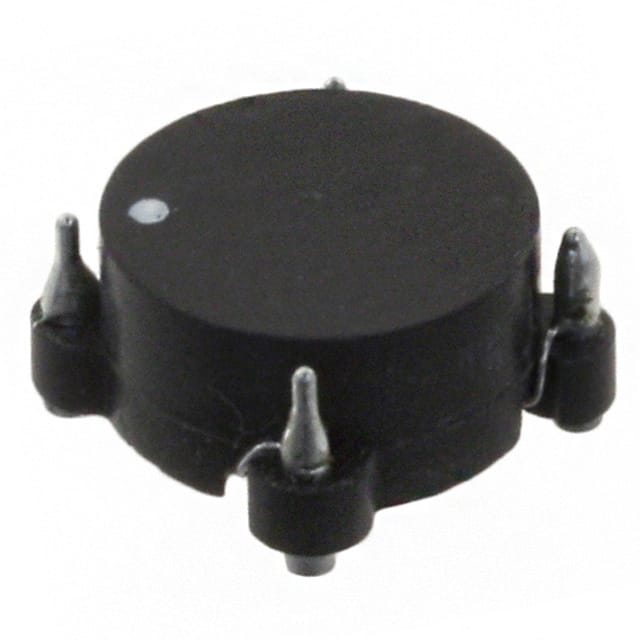

The CM6350R-334 is a common mode choke manufactured by API Delevan Inc. It is designed for power line filtering applications and features 330uH inductance at 10 kHz. The component can handle up to 1.8A of current with a maximum DC resistance of 40mOhm.
The choke operates over a wide temperature range from -55C to +105C, making it suitable for demanding environments. It comes in a horizontal, 4 PC pad surface mount package with dimensions of 9.14mm x 9.14mm and a maximum height of 5.33mm.
With 2 lines, this choke provides effective common mode noise suppression in power circuits. Its surface mount design enables automated assembly and compact layout on PCBs.
| Qty | Low | High |
|---|---|---|
| 1+ | $25.06 | $25.06 |
| 10+ | $20.61 | $20.61 |
| 25+ | $19.07 | $19.07 |
| 50+ | $17.99 | $17.99 |
| 100+ | $16.96 | $16.96 |
| 300+ | $16.17 | $16.17 |
| 500+ | $15.25 | $15.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Horizontal, 4 PC Pad surface mount package.
-55C to 105C
RoHS3 compliant (unverified)
330uH at 10 kHz
1.8A maximum
40mOhm maximum
Surface Mount
