| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
74 pcs
|
74 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature |

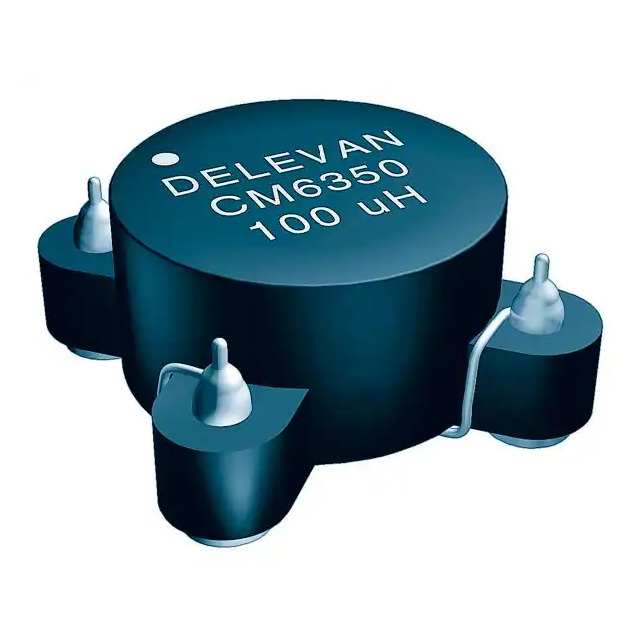

The CM6350-684 is a common mode choke manufactured by API Delevan Inc. It provides 680µH inductance at 10 kHz and is designed for two-line power line filtering. The component is rated for a maximum current of 1.2A with a maximum DC resistance of 90mΩ, making it suitable for power supply and EMI suppression applications.
This surface-mount choke is packaged in a horizontal, 4 PC pad configuration measuring 9.14mm x 9.14mm with a maximum height of 5.33mm. It operates over a temperature range of -55°C to 105°C, allowing use in demanding environments.
The component is categorized under Common Mode Chokes and is intended for use in filtering common mode noise in power lines. Its compact SMD package supports automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 100+ | $18.79 | $18.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 680µH at 10 kHz.
The maximum DC resistance is 90mΩ.
The maximum current rating is 1.2A.
It has 2 lines.
The operating temperature range is -55°C to 105°C.
It is available in a horizontal, 4 PC pad surface mount package measuring 9.14mm x 9.14mm with a maximum height of 5.33mm.
RoHS3 Compliant per existing product data.
