| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature |

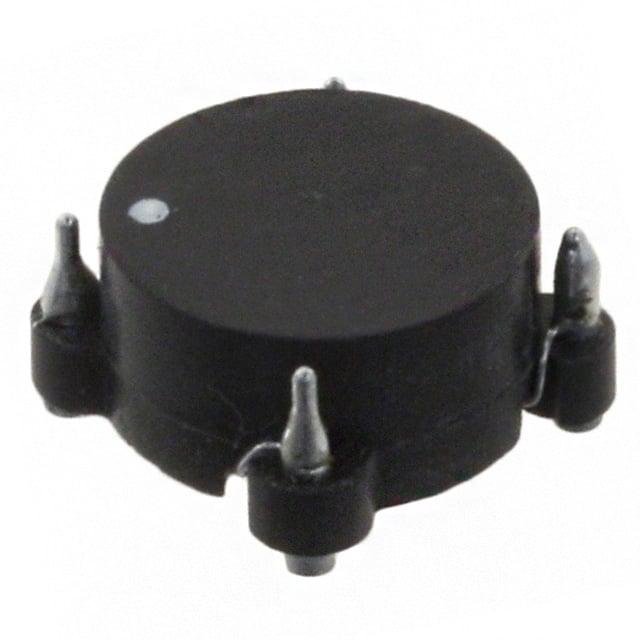

The CM6350-224 is a surface mount common mode choke from API Delevan Inc. It features a nominal inductance of 220 µH at 10 kHz and a maximum DC resistance of 27 mΩ. The component is rated for a maximum current of 2.2 A and is designed for power line filtering applications.
This choke has two lines and is housed in a horizontal, 4 PC pad package measuring 9.14 mm by 9.14 mm with a maximum height of 5.33 mm. It operates over a temperature range of -55°C to 105°C, making it suitable for a wide variety of environments.
The surface mount design allows for automated assembly, and the component is RoHS3 compliant (unverified). It is commonly used in DC/DC converters, switching power supplies, and automotive electronics for common mode noise suppression.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.64 | $23.64 |
| 10+ | $19.44 | $19.44 |
| 25+ | $18.67 | $18.67 |
| 100+ | $16.96 | $16.96 |
| 200+ | $16.17 | $16.17 |
| 300+ | $15.25 | $15.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
220 µH at 10 kHz.
2.2 A maximum.
27 mΩ maximum.
2 lines.
Horizontal, 4 PC Pad surface mount package.
-55°C to 105°C.
RoHS3 Compliant (unverified, low confidence).
