| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
138 pcs
|
138 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature |

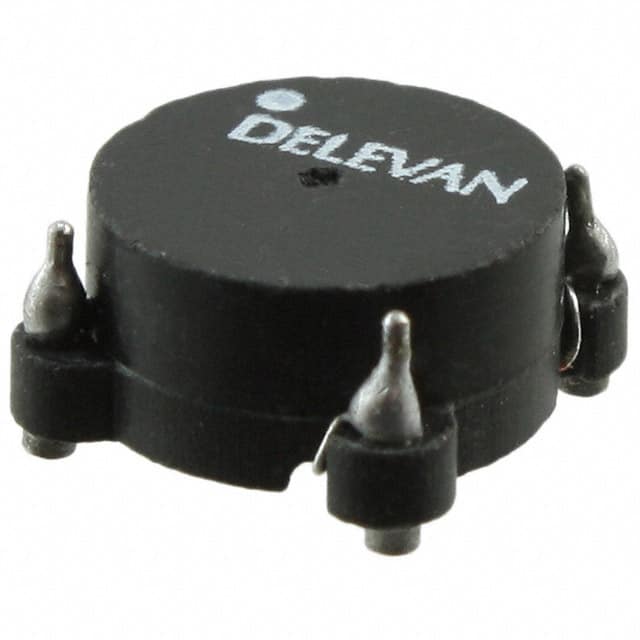

The CM6350-105 is a surface mount common mode choke manufactured by API Delevan Inc. It provides 1 mH inductance per line at 10 kHz, with a maximum DC resistance of 130 mOhm. The component is rated for a maximum continuous current of 900 mA.
This choke is designed for power line filtering applications, offering common mode noise suppression. It features two lines in a compact package measuring 9.14 mm x 9.14 mm with a maximum height of 5.33 mm. The operating temperature range spans from -55°C to 105°C.
The device is housed in a Horizontal, 4 PC Pad surface mount package, suitable for automated assembly. It is reported as RoHS3 compliant, though this compliance is unverified. The part is commonly used in DC/DC converters, EMI suppression circuits, and other power supply filtering needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $25.06 | $25.06 |
| 10+ | $20.61 | $20.61 |
| 25+ | $19.79 | $19.79 |
| 50+ | $18.67 | $18.67 |
| 100+ | $16.96 | $16.96 |
| 200+ | $16.17 | $16.17 |
| 300+ | $15.25 | $15.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1 mH at 10 kHz.
900 mA maximum.
130 mOhm maximum.
-55°C to 105°C.
RoHS3 Compliant (unverified).
Horizontal, 4 PC Pad surface mount.
2 lines.
