Mfr Part #:

CM6317

Name: CM6317
Brand: On Semiconductor
SKU: CM6317

Mfr Name: On Semiconductor

Description:

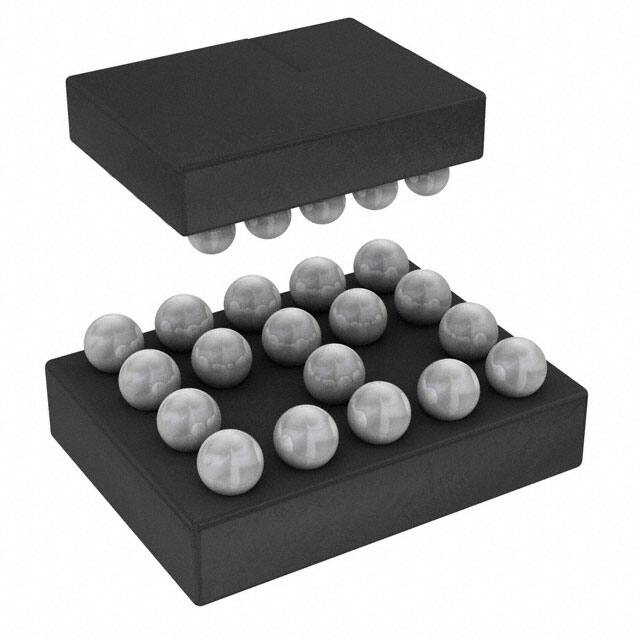

FILTER RC(PI) 70 OHM/30PF SMD

Stock on Request

CM6317 Description

Short technical summary and product information.

FILTER RC(PI) 70 OHM/30PF SMD

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	EMIRFI Filters (LC, RC Networks)
Manufacturer Name	On Semiconductor
Applications	Data Lines for Mobile Devices
ESD Protection	Yes
Filter Order	2nd
Height	0.025" (0.64mm)
Mounting Type	Surface Mount
Number of Channels	7
Operating Temperature	-40°C ~ 85°C
Resistance	70
Size	0.077" L x 0.061" W (1.96mm x 1.56mm)
Technology	RC (Pi)
Type	Low Pass
Values	R = 70Ω, C = 30pF
