CM6296-155 Common mode choke with 1.5mH inductance at 1kHz, 2.5A max current, 90mOhm max DCR, 2 lines, surface mount package.
Mfr Part #:

CM6296-155

Available from 1 distributors
Mfr Name: API Delevan Inc.
API Delevan Inc.
Common mode choke with 1.5mH inductance at 1kHz, 2.5A max current, 90mOhm max DCR, 2 lines, surface mount package.
✓ Total Stock: 142 pcs
$ Price Range: $14.51

CM6296-155 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
142 pcs
On Request
142 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CM6296-155 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Height (Max)
Inductance @ Frequency
Mounting Type
Number of Lines
Operating Temperature
View Similar Products (0)

CM6296-155 Description

Short technical summary and product information.

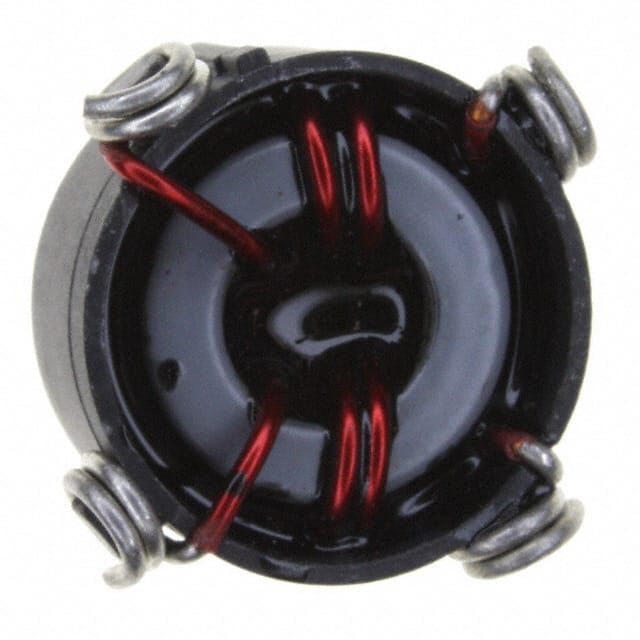

The CM6296-155 is a surface mount common mode choke from API Delevan Inc. It features an inductance of 1.5mH at 1kHz, a maximum current rating of 2.5A, and a maximum DC resistance of 90mOhm. The component has two lines for common mode filtering.



It is designed for surface mount assembly with a horizontal, 4 PC pad package. The dimensions are 26.87mm x 26.87mm with a maximum height of 10.74mm. It operates over a temperature range of -55°C to 125°C.



This choke is suitable for power line filtering and EMI suppression applications where common mode noise needs to be attenuated.

CM6296-155 Quick Information

Product Type: Common Mode Choke
Canonical Name: CM6296-155 Common Mode Choke
Subcategory: Surface Mount Common Mode Choke

CM6296-155 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 5
REACH Status: REACH Unaffected

CM6296-155 Estimated Pricing

Qty Low High
400+ $14.51 $14.51

Estimated market price range - modelled values for guidance only, not live distributor offers.

CM6296-155 Features

  • Inductance of 1.5mH at 1kHz.
  • Rated for 2.5A maximum current.
  • Maximum DC resistance of 90mOhm.
  • Two lines for common mode filtering.
  • Surface mount package with 4 PC pads.

CM6296-155 Applications

  • Used for common mode EMI suppression in power lines.
  • Suitable for filtering in DC-DC converters.
  • Ideal for noise reduction in signal lines.
  • Applied in automotive and industrial electronics.

CM6296-155 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the package type of the CM6296-155?

Horizontal, 4 PC Pad surface mount package.

What is the operating temperature range?

-55°C to 125°C.

Is the CM6296-155 RoHS compliant?

RoHS3 Compliant (unverified, low confidence).

What is the inductance value?

1.5mH at 1kHz.

What is the maximum current rating?

2.5A.

What is the maximum DC resistance?

90mOhm.

How many lines does this common mode choke have?

2 lines.

CM6296-155 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
CM6296R-155
CM6296R-155
API Delevan Inc.
Surface mount common mode choke (CMC) with 1.5mH inductance at 1kHz, 2.5A maximum current rating, and 90mOhm maximum DC resistance. Two-line design in a 26.87mm square package.
View Part
