| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature |

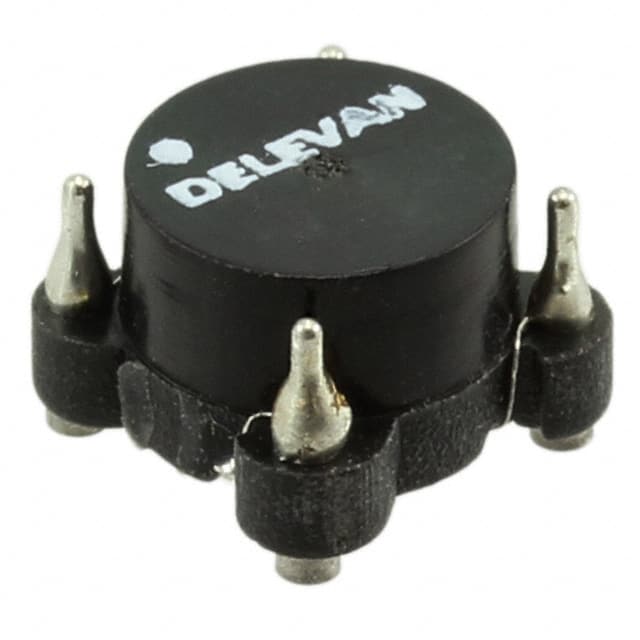

The API Delevan CM6149R-225 is a common mode choke designed for filtering common mode noise in electronic circuits. It offers an inductance of 2.2 mH measured at 10 kHz, with a maximum DC resistance of 750 mOhm. The component is rated for a maximum current of 180 mA.
This surface mount device features two lines for differential mode filtering, housed in a horizontal 4 PC pad package measuring 7.24 mm by 7.24 mm with a maximum height of 5.33 mm. The operating temperature range spans -55°C to 105°C, suitable for a variety of environments.
Compliance with RoHS3 and REACH is claimed, and the moisture sensitivity level is rated at MSL 1 (unlimited). The part number CM6149R-225 is cross-referenced as Digi-Key part DN42144-ND.
| Qty | Low | High |
|---|---|---|
| 1+ | $26.91 | $26.91 |
| 10+ | $22.14 | $22.14 |
| 25+ | $21.56 | $21.56 |
| 100+ | $18.22 | $18.22 |
| 200+ | $17.61 | $17.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The package is Horizontal, 4 PC Pad, surface mount.
-55°C to 105°C.
Yes, it is listed as RoHS3 Compliant. Note: This status is unverified.
2.2 mH at 10 kHz.
180 mA maximum.
750 mOhm maximum.
