CM6149-155
API Delevan Inc.

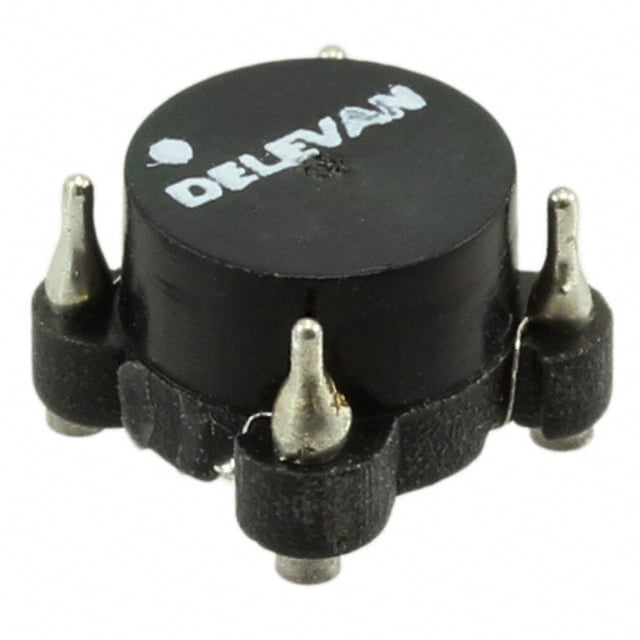

The CM6149-155 is a 2-line surface mount common mode choke from API Delevan Inc. with 1.5mH inductance and 240mA maximum current rating.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
645 pcs
|
645 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature |
The CM6149R-155 is a surface mount common mode choke from API Delevan Inc. It features an inductance of 1.5 mH at 10 kHz, a maximum current rating of 240 mA, and a maximum DC resistance of 500 mOhm. The component contains two lines for common mode noise suppression.
The choke is housed in a horizontal, 4 PC pad surface mount package with dimensions of 7.24 mm x 7.24 mm and a maximum height of 5.33 mm. It operates over a temperature range of -55°C to 105°C, making it suitable for a variety of industrial and automotive environments.
Typical applications include EMI filtering in power supplies, signal line noise suppression, and DC-DC converter input filters. The compact SMD design allows for automated assembly and space-efficient layouts.
| Qty | Low | High |
|---|---|---|
| 800+ | $15.18 | $15.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Horizontal, 4 PC Pad surface mount package.
-55°C to 105°C.
RoHS3 Compliant (unverified).
1.5 mH at 10 kHz.
240 mA.
500 mOhm maximum.
2 lines.
