| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
139 pcs
|
139 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature |

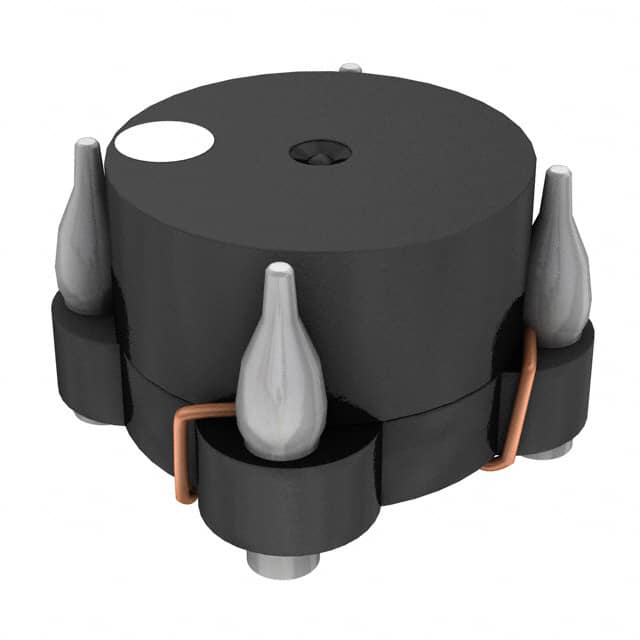

The CM6149-473 is a 2-line surface mount common mode choke from API Delevan Inc. designed to suppress common mode noise on power and signal lines. With an inductance of 47µH at 10kHz, it provides effective filtering for a range of applications.
This choke features a maximum DC resistance of 15mOhm and a current rating of 2.5A, making it suitable for low to moderate power circuits. The component operates over a temperature range of -55°C to 105°C.
Housed in a horizontal, 4 PC pad surface mount package measuring 7.24mm x 7.24mm with a maximum height of 5.33mm, the CM6149-473 is compatible with standard SMD assembly processes.
| Qty | Low | High |
|---|---|---|
| 100+ | $21.70 | $21.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 47µH at 10kHz.
The maximum current rating is 2.5A.
The maximum DC resistance is 15mOhm.
The operating temperature range is -55°C to 105°C.
It is a surface mount device with a horizontal, 4 PC pad package measuring 7.24mm x 7.24mm x 5.33mm (max height).
It is listed as RoHS3 Compliant, but this is unverified and there is a data contradiction.
It has 2 lines.
