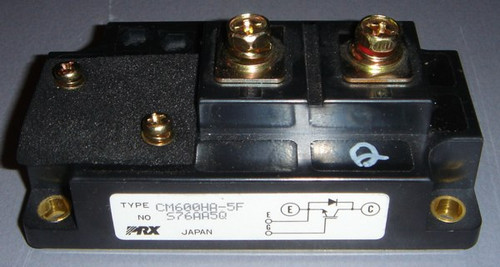

The Powerex CM600HA-5F is a single trench IGBT module designed for high-current switching applications. It features a maximum collector-emitter voltage of 250V and a continuous collector current rating of 600A, with a power dissipation capability of 960W.
The device offers a low collector-emitter saturation voltage of 1.7V at 10V gate drive and 600A collector current, contributing to efficient operation. The input capacitance is 165 nF at 10V collector-emitter bias.
This module uses a standard gate input and does not include an NTC thermistor. It is housed in a chassis-mount module package and operates over a junction temperature range of -40°C to 150°C.
| Qty | Low | High |
|---|---|---|
| 10+ | $174.05 | $174.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (Vces) is 250V.
The maximum continuous collector current (Ic) is 600A.
The maximum power dissipation (Pd) is 960W.
The operating junction temperature range is -40°C to 150°C.
The device is housed in a chassis mount module package.
The part is listed as RoHS3 compliant, but this status is unverified.
