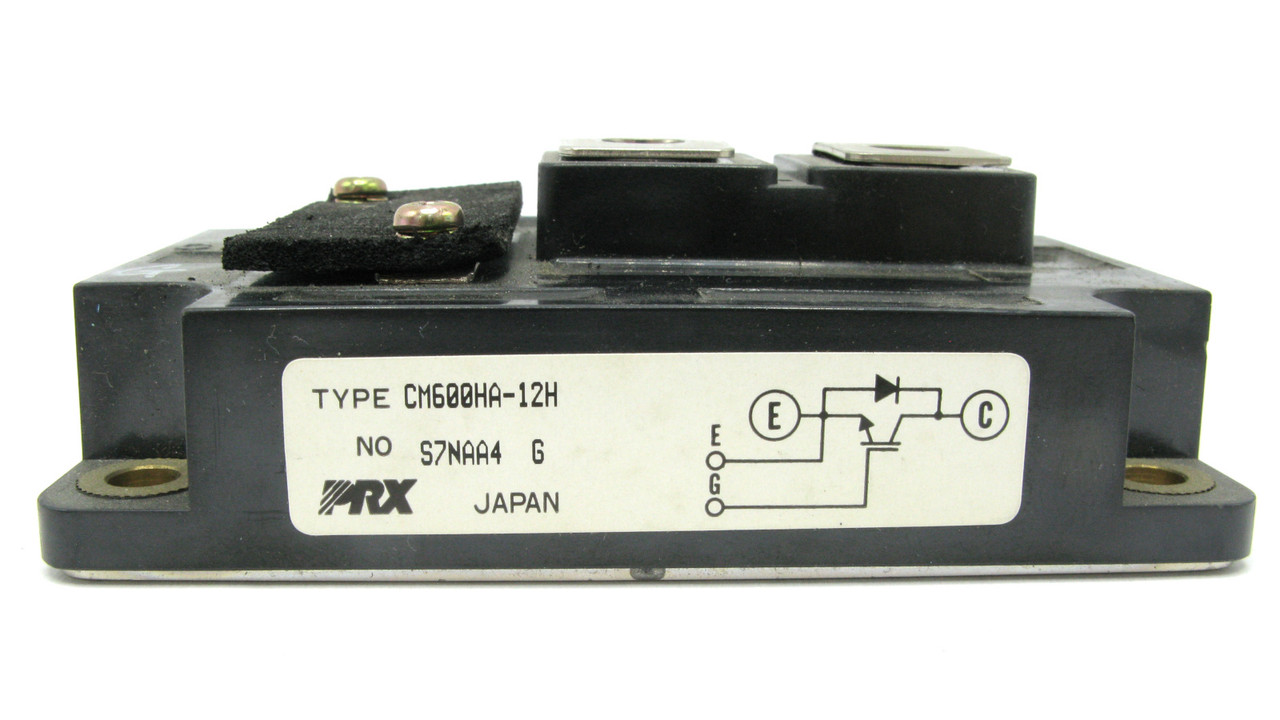

The Powerex CM600HA-12H is a single IGBT module from the H-Series IGBTMOD family, rated for a collector-emitter voltage of 600V and a continuous collector current of 600A. It includes a reverse-connected super-fast recovery free-wheel diode rated at 600A forward current and 1200A surge current.
The module features a low Vce(sat) of 2.1V typical and 2.8V maximum at 600A, enabling efficient high-current switching. It is designed for high-frequency operation up to 20-25 kHz and includes an isolated baseplate for simplified thermal management.
Packaged in a module form factor for chassis mounting, the CM600HA-12H has M8 terminal screws with a maximum torque of 95 in-lb and M6 mounting screws with a maximum torque of 26 in-lb. The module weighs 560g and operates over a junction temperature range of -40°C to 150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $169.99 | $169.99 |
| 10+ | $168.78 | $168.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (Vces) is 600V.
The continuous collector current (Ic) is 600A maximum.
The junction temperature (Tj) range is -40°C to 150°C.
The RoHS status is listed as RoHS3 Compliant, but this is unverified and should be confirmed with documentation.
The CM600HA-12H is a Module package designed for Chassis Mount installation.
