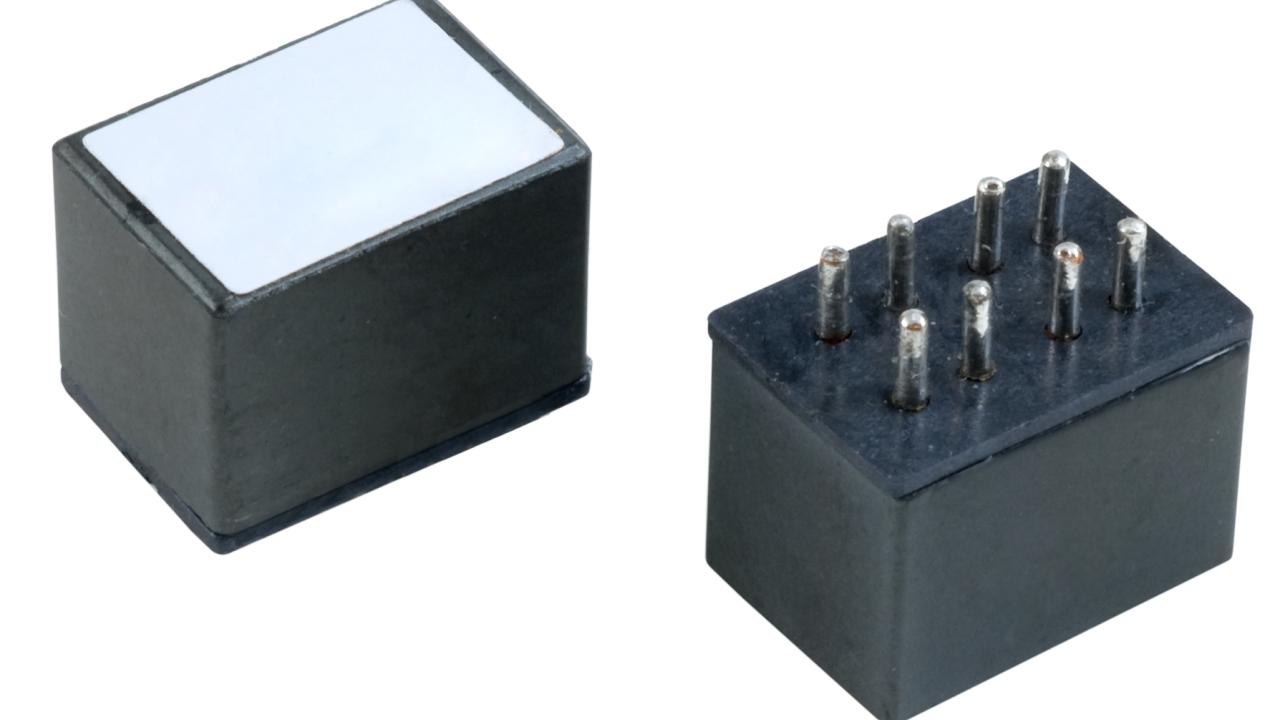

The CM5740Z241B-10 is a common mode choke designed for power and signal line filtering applications. It provides 4 lines of filtering with a maximum current rating of 20A and a nominal impedance of 100 Ω at 100 MHz. The component features a maximum DC resistance of 1.3 mOhm, ensuring efficient power handling with minimal loss.
This through-hole choke is housed in a vertical 8 PC pin package, measuring 14.48mm in length, 10.03mm in width, and 10.77mm in height. The PC pin termination style facilitates reliable soldering to printed circuit boards. The operating temperature range of -40°C to 125°C makes it suitable for a wide variety of industrial and automotive environments.
Common mode chokes are essential for suppressing electromagnetic interference (EMI) in power lines and signal lines. The CM5740Z241B-10 is particularly suited for applications requiring high current handling and compact through-hole packaging. Its 4-line configuration allows for filtering multiple circuits simultaneously, making it a versatile component for power supply and signal integrity designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.98 | $7.98 |
| 10+ | $6.56 | $6.56 |
| 25+ | $6.07 | $6.07 |
| 50+ | $5.72 | $5.72 |
| 100+ | $5.40 | $5.40 |
| 250+ | $4.99 | $4.99 |
| 825+ | $4.55 | $4.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 125°C.
The package is Vertical, 8 PC Pin, with through-hole mounting and PC pin termination.
The part is marked as RoHS3 compliant, but this status is unverified.
The maximum current rating is 20A.
The impedance is 100 Ω at 100 MHz.
It filters 4 lines.
