| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating |

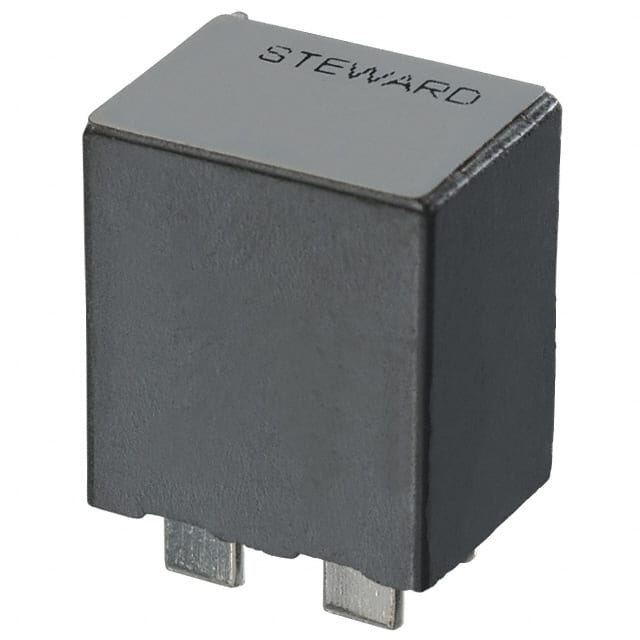

The CM5441Z161B-10 is a common mode choke (CMC) manufactured by Laird Technologies. It is designed for power line filtering applications with a maximum current rating of 75A and a DC resistance of 0.3 mOhm typical. The component provides 160 Ohm impedance at 100 MHz across 2 lines. Its voltage rating is 340V.
The choke is housed in a through-hole vertical package with 4 PC pins, measuring 13.72mm x 10.41mm with a maximum height of 15.24mm. It operates over a temperature range of -40°C to 125°C.
This component is suitable for suppressing common mode noise in high-current power supply circuits. The low DCR helps minimize power loss. The vertical mounting allows for compact PCB layouts. Compliance with RoHS and REACH is indicated, though unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.74 | $3.74 |
| 10+ | $3.08 | $3.08 |
| 25+ | $2.85 | $2.85 |
| 50+ | $2.63 | $2.63 |
| 100+ | $2.48 | $2.48 |
| 250+ | $2.46 | $2.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
340V.
Vertical, 4 PC Pin through-hole package.
-40°C to 125°C.
It is indicated as RoHS3 Compliant (unverified).
75A.
160 Ohm.
2 lines.
